MP9931GR Integrated Circuit Chip High-Voltage 100V Synchronous Step-Down Switching Regulator Controller with 450µA Quiescent Current and 60ns Minimum On Time

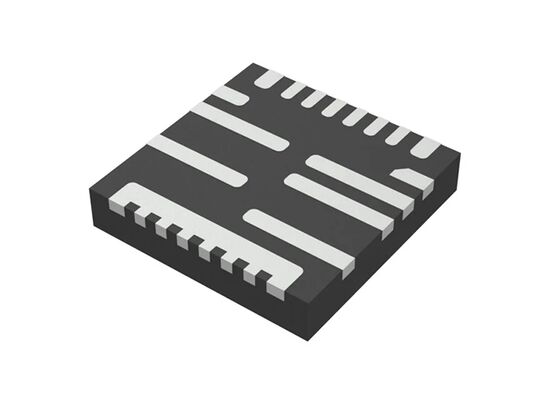

Large Image : MP9931GR Integrated Circuit Chip High-Voltage 100V Synchronous Step-Down Switching Regulator Controller with 450µA Quiescent Current and 60ns Minimum On Time

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MP9931GR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-23
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

MP9931GR Integrated Circuit Chip High-Voltage 100V Synchronous Step-Down Switching Regulator Controller with 450µA Quiescent Current and 60ns Minimum On Time

Description

Part Number:	MP9931GR	Package:	QFN-23
Input Voltage Range:	7V To 100V	Quiescent Current:	450µA
Enable (EN) Shutdown Current:	4µA	Minimum On Time:	60ns
Highlight:	100V Input Voltage Integrated Circuit Chip , 450µA Quiescent Current Switching Regulator Controller , 60ns Minimum On Time Synchronous Step-Down Controller

MP9931GR Integrated Circuit Chip High-Voltage 100V Synchronous Step-Down Switching Regulator Controller

The MP9931GR is a high-voltage synchronous step-down switching regulator controller capable of directly stepping down voltages from up to 100V. This advanced controller drives dual N-channel MOSFETs and features an adaptive constant-on-time (COT) control architecture for fast transient response and simplified loop stabilization.

The DC auto-tune loop ensures excellent load and line regulation, while pulse-skip mode (PSM) and ultrasonic mode (USM) enable asynchronous operation to optimize light-load efficiency. Operating frequency can be configured via external resistor or synchronized to an external clock for noise-sensitive applications.

Comprehensive fault protections include precision input over-voltage protection (OVP), output over-current protection (OCP), and thermal shutdown. The MP9931GR is available in a compact QFN-23 (4mmx4mm) package.

Key Features & Benefits

Basic Functions

Lossless On Resistance (RDS(ON)) or Shunt Current Sense
Constant-On-Time (COT) Control for Fast Load Transient Response
7V to 100V Input Voltage (VIN) Range
Adjustable Output Voltage (VOUT) from 0.8V to 80V
450µA Quiescent Current (IQ)
4µA Enable (EN) Shutdown Current
60ns Minimum On Time (tON_MIN)
Low-Dropout (LDO) Operation: Maximum Duty Cycle Up to 99%

Operational Modes

Ultrasonic Mode (USM), Pulse-Skip Mode (PSM), or Forced Continuous Conduction Mode (FCCM) Selectable via MODE Pin
Selectable Frequency via FREQ Resistor: 100kHz to 1000kHz
Power Good (PG) Indicator
Selectable Ramp via RAMP Pin
Selectable Current Limit via ILIM Resistor

Drive Capability

10V N-Channel MOSFET Gate Driver with 4.2A Source and 5.2A Sink Capability
SYNCI with External Clock
180° Out-of-Phase SYNCO

Power Management

VDRV Pin Voltage (VDRV) Power from Output Voltage (VOUT) when VOUT > 8.4V
External VDRV: Bias VDRV with External Voltage Source Exceeding Internal VDRV
