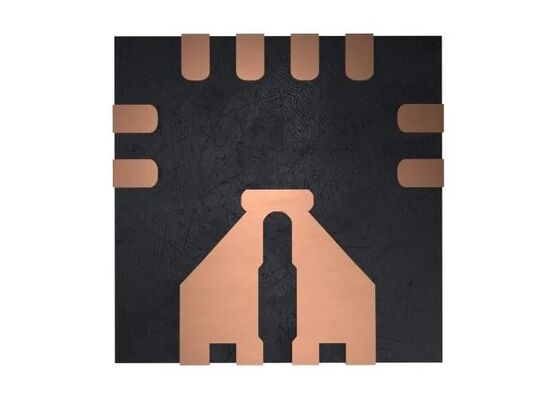

MCS1823GQTE Sensor IC Hall-Effect Current Sensor with 120kHz Bandwidth, 5A to 50A Range, and 0.6mΩ Internal Conductor Resistance

MCS1823GQTE Sensor IC Hall-Effect Current Sensor with 120kHz Bandwidth, 5A to 50A Range, and 0.6mΩ Internal Conductor Resistance
MCS1823GQTE Sensor IC Hall-Effect Current Sensor with 120kHz Bandwidth, 5A to 50A Range, and 0.6mΩ Internal Conductor Resistance

Large Image :  MCS1823GQTE Sensor IC Hall-Effect Current Sensor with 120kHz Bandwidth, 5A to 50A Range, and 0.6mΩ Internal Conductor Resistance

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MCS1823GQTE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TQFN-12
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

MCS1823GQTE Sensor IC Hall-Effect Current Sensor with 120kHz Bandwidth, 5A to 50A Range, and 0.6mΩ Internal Conductor Resistance

Description
Part Number: MCS1823GQTE Bandwidth: 120kHz
Bidirectional Or Unidirectional Range: 5A To 50A Internal Conductor Resistance: 0.6mΩ
Total Accuracy: ±2.5% Single Supply Options: 3.3V Or 5V
Highlight:

120kHz Bandwidth Sensor IC

,

5A to 50A Range Hall-Effect Current Sensor

,

0.6mΩ Internal Conductor Resistance MCS1823GQTE

MCS1823GQTE Sensor IC Linear Hall-Effect Current Sensor With Over-Current Detection
The MCS1823GQTE is a linear Hall-effect current sensor IC designed for precise AC or DC current sensing applications. Its differential Hall array technology effectively cancels out stray magnetic fields, ensuring accurate measurements.
Featuring a low-resistance primary conductor (0.6mΩ), this sensor allows high currents to flow in close proximity to the integrated circuit containing high-accuracy Hall sensors. The magnetic field generated by the current is measured at two distinct points by integrated Hall transducers, with the difference converted into a voltage proportional to the applied current. Advanced spinning current technology provides low, stable offset performance.
The MCS1823GQTE includes fast over-current detection (OCD) capability, enabling efficient system monitoring for over-current events. Its compact footprint minimizes board space requirements, making it ideal for space-constrained applications. Available in an ultra-small TQFN-12 (3mmx3mm) package.
Key Features & Benefits
  • 3.3V or 5V Single Supply Options
  • Immune to External Gradient Magnetic Fields via Differential Sensing
  • 0.6mΩ Internal Conductor Resistance
  • ±2.5% Total Accuracy
  • 5A to 50A Bidirectional or Unidirectional Range
  • 120kHz Bandwidth
  • Custom Over-Current Detection (OCD) from 50% to 240% of IPMAX
  • Fast OCD with 1μs Response Time
  • Output Voltage (VOUT) Proportional to AC or DC Currents
  • Ratiometric or Absolute VOUT Options
  • Factory-Trimmed for Accuracy
  • No Magnetic Hysteresis
  • Available in TQFN-12 (3mmx3mm) Package
Applications
  • Motor Control Systems
  • Audio Driver Current Control
  • Automotive Systems
  • Load Detection and Management
  • Switch-Mode Power Supplies
  • Over-Current Fault Protection
