MPF42797DRT Integrated Circuit Chip Fuel Gauge for 2 to 10 Stacked Lithium Ion Cells with I2C Interface

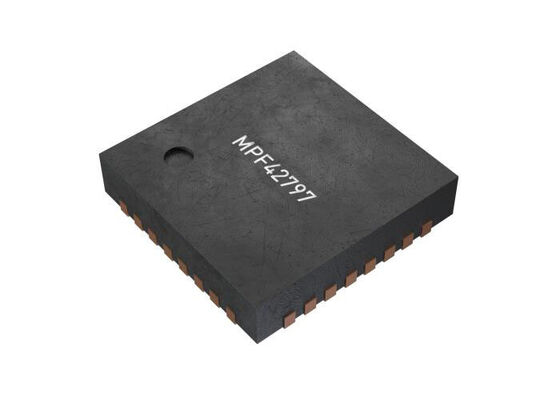

Large Image : MPF42797DRT Integrated Circuit Chip Fuel Gauge for 2 to 10 Stacked Lithium Ion Cells with I2C Interface

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MPF42797DRT

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TQFN-32
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

MPF42797DRT Integrated Circuit Chip Fuel Gauge for 2 to 10 Stacked Lithium Ion Cells with I2C Interface

Description

Part Number:	MPF42797DRT	Function:	Fuel Gauge
Battery Chemistry:	Lithium Ion	Number Of Cells:	2 ~ 10
Interface:	I2C	Operating Temperature:	-40°C ~ 85°C (TJ)
Highlight:	2 to 10 Stacked Cells Integrated Circuit Chip , Lithium Ion Battery Chemistry Fuel Gauge Chip , I2C Interface Battery Management IC

MPF42797DRT Integrated Circuit Chip - 2 to 10 Stacked Cells Battery Pack Fuel Gauge

The MPF42797DRT is a sophisticated battery pack fuel gauge IC designed for 2 to 10 stacked cells. This versatile solution supports various lithium cell chemistries and sizes, offering quick setup through basic configurations while providing advanced tuning capabilities for specific application requirements.

Technical Specifications

Function	Fuel Gauge
Battery Chemistry	Lithium Ion
Number of Cells	2 ~ 10
Interface	I2C
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	32-WFQFN Exposed Pad
Supplier Device Package	32-TQFN (4x4)

Key Features

Compatible with commonly-used battery monitors for up to 10 series cells
±3% State-of-Charge (SOC) accuracy when paired with MP279x battery monitors
Comprehensive battery information including pack and cell SOC, SOH, remaining runtime, charge time, and instantaneous available power
Supports wide variety of lithium cells
Adaptive learning for refining initial charge/discharge settings and tracking cell degradation
Lifetime logging capabilities
2.5V minimum supply voltage
Low current consumption: 6μA in disabled mode and 135μA average in operating mode
Supports up to 400kHz interface with CRC for robust communication
Compact TQFN-32 (4mmx4mm) package
Available in turn-key MPS BMS modules: MBM1xS-P50 and MBM1xS-P100

Applications

Light EV: Scooters, Bikes, and Golf Carts
Energy Storage: UPS and Renewable Energy Systems
Industrial Robots, Floor Cleaners, and Forklifts
Cordless Tools and Gardening Equipment
