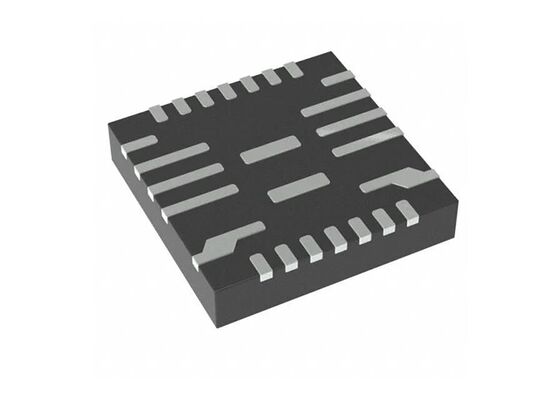

MP6540HGU Integrated Circuit Chip 50V 5A Three-Phase Power Brushless DC Motor Drivers
MP6540HGU is a three-phase brushless DC motor driver that integrates three half-bridges consisting of six N-channel power MOSFETs, pre-drivers, gate drive power supplies, and current-sense amplifiers.
Performance Specifications
The MP6540HGU can deliver up to 6A of peak current and 5A of continuous output current, based on thermal and PCB conditions. The device uses an internal charge pump to generate the gate drive supply voltage for the high-side MOSFETs, and a trickle charge circuit that maintains sufficient gate drive voltage to operate at 100% duty cycle.
Key Advantages
- Full integration eliminates external FETs and reduces solution size
- Internal current sense capability
- Highest output current possible in a 5mmx5mm package
- Lower overall solution cost
Technical Features
- 5.5V to 50V Operating Supply Voltage
- 5A Output Current / 6A Peak Current
- Low RDS(ON): HS + LS 50mΩ
- PWM & ENBL inputs
- Internal Charge Pump Supports 100% Duty Cycle Operation
- Integrated Bidirectional Current-Sense Amplifiers
- Automatic Synchronous Rectification
Applications
- Brushless DC Motors
- Permanent Synchronous Magnet Motors
