MP4583GQVE Integrated Circuit Chip 100V 3A Synchronous Step-Down DC/DC Converter with 8μA Quiescent Current

MP4583GQVE Integrated Circuit Chip 100V 3A Synchronous Step-Down DC/DC Converter with 8μA Quiescent Current
MP4583GQVE Integrated Circuit Chip 100V 3A Synchronous Step-Down DC/DC Converter with 8μA Quiescent Current

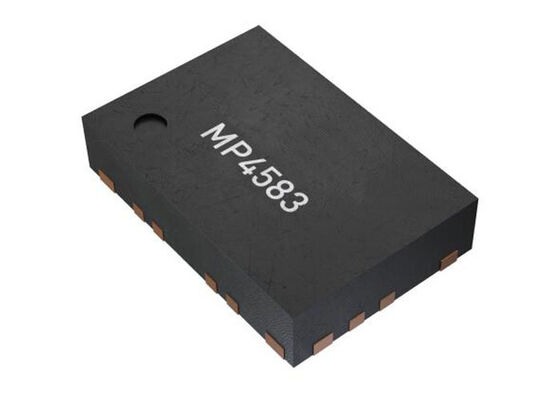

Large Image :  MP4583GQVE Integrated Circuit Chip 100V 3A Synchronous Step-Down DC/DC Converter with 8μA Quiescent Current

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP4583GQVE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-19
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

MP4583GQVE Integrated Circuit Chip 100V 3A Synchronous Step-Down DC/DC Converter with 8μA Quiescent Current

Description
Part Number: MP4583GQVE Input Voltage Range: 4.5V To 100V
Quiescent Current: 8μA Frequency - Switching: 400kHz
Operating Temperature: -40°C ~ 125°C (TJ) Package: QFN-19 (3mmx5mm)
Highlight:

100V Input Voltage DC/DC Converter

,

3A Output Current Synchronous Step-Down Converter

,

8μA Quiescent Current Integrated Circuit Chip

MP4583GQVE Integrated Circuit Chip 100V 3A Synchronous Step-Down DC/DC Converter
The MP4583GQVE is a 100V, 3A synchronous step-down DC/DC converter featuring an 8μA quiescent current (IQ) with integrated high-side and low-side MOSFETs. This converter supports up to 3A output current with internal compensation for optimized performance.
Technical Specifications
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 100V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 35V
Current - Output 3A
Frequency - Switching 400kHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount, Wettable Flank
Package / Case 19-PowerVFQFN
Supplier Device Package 19-QFN (3x5)
Key Features
  • 4.5V to 100V Input Voltage (VIN) Range
  • 8μA Quiescent Current (IQ)
  • Fixed 400kHz Switching Frequency (fSW)
  • Selectable Power-Save Mode (PSM) or Forced Continuous Conduction Mode (FCCM)
  • 0.8V to 35V Output Voltage (VOUT) Range
  • 170mΩ/80mΩ Internal MOSFETs
  • Power Good (PG) Indication
  • Additional BIAS Pin for High-Efficiency VCC (VCC) Regulator
  • Internal Loop Compensation and Soft Start (SS)
  • Available in a QFN-19 (3mmx5mm) Package
Applications
  • Power Tools
  • Solar Inverters/Optimizers
  • Portable Power Stations
  • Battery Management Systems (BMS)
  • Server Power/Telecom Power Units
