MP2793DFP Integrated Circuit Chip 4-Cell to 16-Cell High-Accuracy Battery Monitor and Protector with Passive Cell Balancing

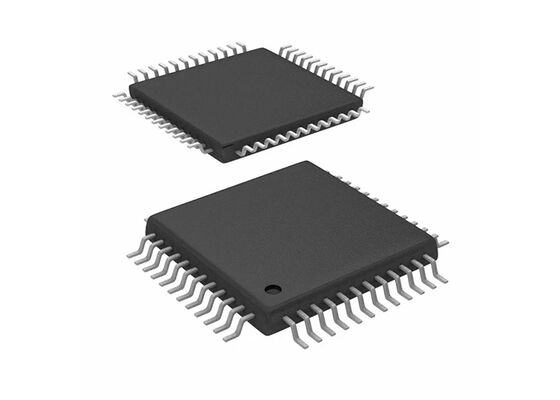

Large Image : MP2793DFP Integrated Circuit Chip 4-Cell to 16-Cell High-Accuracy Battery Monitor and Protector with Passive Cell Balancing

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MP2793DFP

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TQFP-48
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

MP2793DFP Integrated Circuit Chip 4-Cell to 16-Cell High-Accuracy Battery Monitor and Protector with Passive Cell Balancing

Description

Part Number:

MP2793DFP

Package:

TQFP-48

Number Of Cells:

4~ 16

Passive Cell Balancing:

58mA

Highlight:

4-Cell to 16-Cell Integrated Circuit Chip

High-Accuracy Battery Monitor

Passive Cell Balancing Battery Protector

MP2793DFP Integrated Circuit Chip 4-Cell To 16-Cell High-Accuracy Battery Monitor And Protector

The MP2793DFP is a robust battery management device providing a complete analog front-end (AFE) monitoring and protection solution. Designed for multiple-cell series battery management systems (BMS), this device supports I2C or serial peripheral interface (SPI) communication and accommodates 4-cell to 16-cell series battery packs, with absolute voltage exceeding 80V on specific pins.

The MP2793DFP integrates two separate analog-to-digital converters (ADCs). The first ADC measures each channel's differential cell voltages (up to 16 channels), die temperature, and 4-channel temperatures via external negative temperature coefficient (NTC) thermistors. The second ADC measures current via an external current-sense resistor. This dual ADC architecture enables synchronous voltage and current measurements for comprehensive cell and pack impedance monitoring.

Key Features & Benefits

Dual Analog-to-Digital Converter (ADC) Architecture
<±2% State-of-Charge (SOC) Error with MPF4279x Fuel Gauge
Cell Voltage Measurement Error <5mV
Current/Coulomb Counter Error <±0.5%
Strictly Synchronized Current/Voltage Measurement for Impedance Sensing
High-Side N-Channel MOSFET Drivers for Charge and Discharge Control
Supports FET Soft-Start (SS) Discharge Control to Eliminate Pre-Charge Circuit
Drives Up to 100A DC with Parallel N-Channel MOSFETs
Hardware Configurable Protections with Recovery Option
Passive Cell Balancing Up to 58mA per Cell
Can Drive External Balancing Transistors
Automatic or Manual Control
Integrated 3.3V and 5V Low-Dropout (LDO) Regulators
Load and Charger Plug-In Detection
High-Voltage and Low-Voltage General-Purpose Input/Output (GPIOs)
Dedicated Thermistor Inputs
Open-Wire Detection
Persistent Dead Battery Flag
Lockable Multiple-Time Programmable (MTP) Memory for Key Thresholds
I2C Interface or Serial Peripheral Interface (SPI) with 8-Bit Cyclic Redundancy Check (CRC)
Random Cell Connection Tolerant
Available in TQFP-48 (7mmx7mm) Package

Protection Features

Charge/Discharge Over-Current (OC) and Short-Circuit Protection
Cell Under-Voltage (UV) and Over-Voltage (OV) Protection
Pack UV and OV Protection
Cell Under-Temperature (UT) and Over-Temperature (OT) Protection
Die High-Temperature Protection
