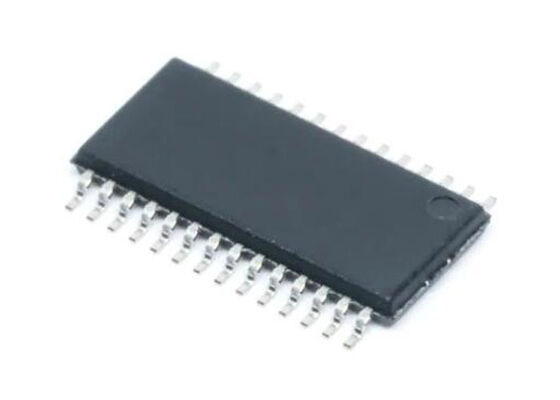

DRV8313PWPR Integrated Circuit Chip
3-Phase Half Bridge Motor Driver IC in HTSSOP28 Package
Product Overview
The DRV8313PWPR provides three individually controllable half-H-bridge drivers designed for three-phase brushless-DC motor applications. This versatile IC can also drive solenoids or other loads, with each output channel featuring N-channel power MOSFETs in a 1/2-H-bridge configuration and dedicated ground terminals for independent external current sensing.
Technical Specifications
| Function |
Driver - Fully Integrated, Control and Power Stage |
| Output Configuration |
Half Bridge (3) |
| Interface |
Parallel |
| Technology |
Power MOSFET |
| Applications |
General Purpose |
| Voltage - Supply |
8V ~ 60V |
| Voltage - Load |
8V ~ 60V |
| Operating Temperature |
-40°C ~ 150°C (TJ) |
| Mounting Type |
Surface Mount |
| Package / Case |
28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package |
28-HTSSOP |
Key Features
- Triple 1/2-H Bridge Driver IC for 3-Phase brushless DC Motors, Solenoids, and Brushed DC Motors
- High Current-Drive Capability: 2.5-A Peak
- Low MOSFET ON-Resistance
- Independent 1/2-H-Bridge Control
- Uncommitted Comparator for Current Limit or Other Functions
- Built-In 3.3-V 10-mA LDO Regulator
- 8-V to 60-V Operating Supply-Voltage Range
- Sleep Mode for Standby Operation
- Small Package and Footprint: 28-Pin HTSSOP (PowerPAD™ Package)
Applications
Camera Gimbals, HVAC Motors, Office Automation Machines, Factory Automation and Robotics
