LAN9252/ML Ethernet IC 2/3-port EtherCAT Device Controller with 100BASE-TX Support in 64-QFN Package

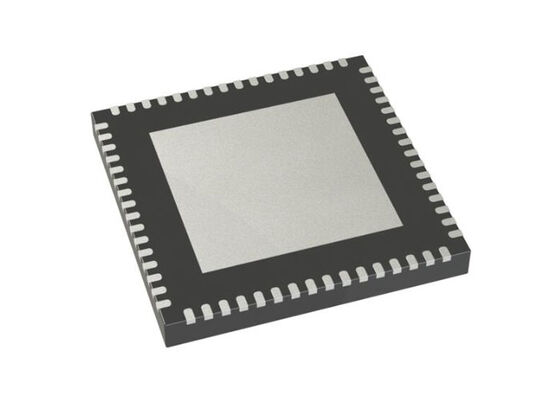

Large Image : LAN9252/ML Ethernet IC 2/3-port EtherCAT Device Controller with 100BASE-TX Support in 64-QFN Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LAN9252/ML

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-64
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

LAN9252/ML Ethernet IC 2/3-port EtherCAT Device Controller with 100BASE-TX Support in 64-QFN Package

Description

Part Number:	LAN9252/ML	Standard:	100BASE-FX/TX
Data Rate:	10 Mb/s, 100 Mb/s	Pd - Power Dissipation:	821 MW
Supply Current - Max:	113.5 MA	Interface Type:	I2C, JTAG, MII, SMI, SPI/SQI
Highlight:	2/3-port EtherCAT Ethernet IC , 100BASE-TX Ethernet IC , 64-QFN EtherCAT Device Controller

LAN9252/ML Ethernet IC EtherCAT Device Controller

LAN9252/ML is a 2/3-port EtherCAT device controller (ESC) with dual integrated Ethernet PHYs, each containing a full-duplex 100BASE-TX transceiver supporting 100Mbps operation.

Product Overview

This device supports HP Auto-MDIX for use with direct connect or cross-over LAN cables and offers 100BASE-FX support via external fiber transceiver. It provides system developers with a cost-effective solution for implementing EtherCAT device applications.

Technical Specifications

Protocol	Ethernet
Function	Controller
Interface	SPI
Standards	10/100 Base-FX/T/TX PHY
Voltage - Supply	1.8V ~ 3.3V
Operating Temperature	0°C ~ 70°C
Package / Case	64-VFQFN Exposed Pad
Supplier Device Package	64-QFN (9x9)

Key Features

2/3-port EtherCAT SubDevice controller with 3 Fieldbus Memory Management Units (FMMUs) and 4 SyncManagers
Interfaces with most 8/16-bit embedded controllers and 32-bit embedded controllers with 8/16-bit bus
Integrated Ethernet PHYs with HP Auto-MDIX
Wake on LAN (WoL) support
Low power mode for system sleep until addressed by MainDevice
Cable diagnostic support
1.8V to 3.3V variable voltage I/O
Integrated 1.2V regulator for single 3.3V operation
Low pin count and small body size package

Applications

Motor Motion Control
Process/Factory Automation
Communication Modules, Interface Cards
Sensors
Hydraulic and Pneumatic Valve Systems
Operator Interfaces
