LAN9252I/PT Ethernet IC 2/3-Port EtherCAT Slave Controller with Integrated Ethernet PHYs and Distributed Clock Support

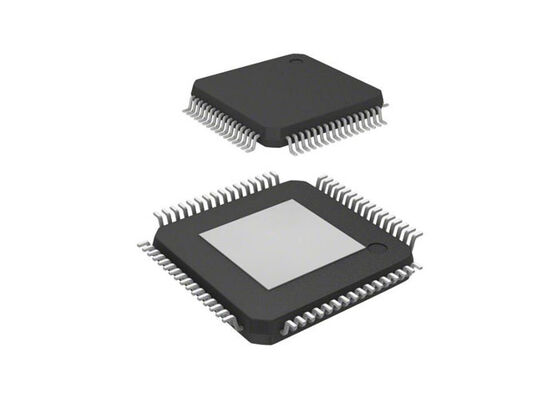

Large Image : LAN9252I/PT Ethernet IC 2/3-Port EtherCAT Slave Controller with Integrated Ethernet PHYs and Distributed Clock Support

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LAN9252I/PT

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TQFP-64
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

LAN9252I/PT Ethernet IC 2/3-Port EtherCAT Slave Controller with Integrated Ethernet PHYs and Distributed Clock Support

Description

Part Number:	LAN9252I/PT	Standards:	10/100 Base-FX/T/TX PHY
Interface:	SPI	Pd - Power Dissipation:	821 MW
Voltage - Supply:	1.8V ~ 3.3V	Operating Temperature:	-40°C ~ 85°C
Highlight:	2/3-Port Ethernet IC , Integrated Ethernet PHYs EtherCAT Slave Controller , Distributed Clock Support LAN9252I/PT

LAN9252I/PT Ethernet IC 2/3-Port EtherCAT Slave Controller

The LAN9252I/PT is a 2/3-Port EtherCAT® Slave Controller with Integrated Ethernet PHYs, featuring a 3-port EtherCAT device controller with 4K bytes of Dual Port memory (DPRAM), 4 SyncManagers, 3 Fieldbus Memory Management Units (FMMUs), and a 64-bit Distributed Clock.

Specifications

Parameter	Value
Package / Case	TQFP-64
Product	Ethernet Controllers
Standard	100BASE-FX/TX
Number of Transceivers	2 Transceiver
Data Rate	10 Mb/s, 100 Mb/s
Interface Type	I2C, JTAG, MII, SMI, SPI/SQI
Supply Voltage Range	1.14 V to 3.6 V
Operating Temperature	-40 ℃ to +85 ℃
Duplex	Full Duplex, Half Duplex
Power Dissipation	821 mW

Key Features

Integrated high-performance 100Mbps Ethernet transceivers
- Compliant with IEEE 802.3/802.3u (Fast Ethernet)
- 100BASE-FX support via external fiber transceiver
- Loop-back modes
- Automatic polarity detection and correction
- HP Auto-MDIX
EtherCAT slave controller
- Supports 3 FMMUs
- Supports 4 SyncManagers
- Distributed clock support allows synchronization with other EtherCAT devices
- 4K bytes of DPRAM
8/16-Bit Host Bus Interface
- Indexed register or multiplexed bus
- Allows local host to enter sleep mode until addressed by EtherCAT Master
- SPI / Quad SPI support
Digital I/O Mode for optimized system cost
3rd port for flexible network configurations
Comprehensive power management features
- 3 power-down levels
- Wake on link status change (energy detect)
- Magic packet wakeup, Wake on LAN (WoL), wake on broadcast, wake on perfect DA
- Wakeup indicator event signal
Power and I/O
- Integrated power-on reset circuit
- Latch-up performance exceeds 150mA per EIA/JESD78, Class II
- JEDEC Class 3A ESD performance
- Single 3.3V power supply (integrated 1.2V regulator)

Applications

Motor Motion Control Data Acquisition Process/Factory Automation Communication Modules & Interface Cards Sensors Power Grid Automation Building Automation Hydraulic and Pneumatic Valve Systems Operator HMI Interfaces
