LAN9252V/ML Ethernet IC EtherCAT Controller with Dual Integrated Ethernet PHYs 100BASE-FX/TX Standard and 1.8V to 3.3V Voltage Supply

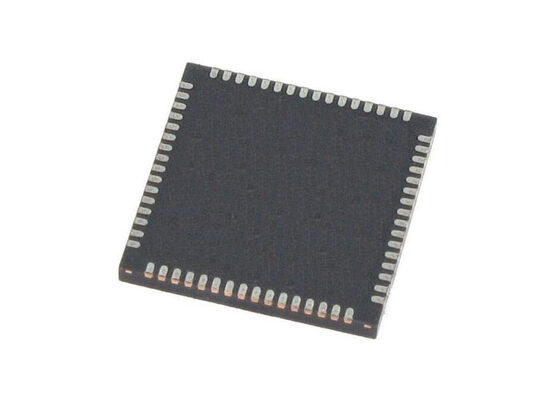

Large Image : LAN9252V/ML Ethernet IC EtherCAT Controller with Dual Integrated Ethernet PHYs 100BASE-FX/TX Standard and 1.8V to 3.3V Voltage Supply

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LAN9252V/ML

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-64
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

LAN9252V/ML Ethernet IC EtherCAT Controller with Dual Integrated Ethernet PHYs 100BASE-FX/TX Standard and 1.8V to 3.3V Voltage Supply

Description

Part Number:	LAN9252V/ML	Standard:	100BASE-FX/TX
Number Of Transceivers:	2 Transceiver	Data Rate:	10 Mb/s, 100 Mb/s
Voltage - Supply:	1.8V ~ 3.3V	Pd - Power Dissipation:	821 MW
Highlight:	Dual Integrated Ethernet PHYs Ethernet IC , 100BASE-FX/TX Standard EtherCAT Controller , 1.8V to 3.3V Voltage Supply LAN9252V/ML

LAN9252V/ML Ethernet IC EtherCAT Controller With Dual Integrated Ethernet PHYs

The LAN9252V/ML is a 2/3-port EtherCAT device controller featuring 3 Fieldbus Memory Management Units (FMMUs) and 4 SyncManagers. This advanced controller supports multiple process data interfaces including SPI/SQI, HBI, and a 16-bit Digital IO interface, providing flexible connectivity options for various industrial applications.

Key Specifications

Ethernet Bandwidth	100BASE-TX/100BASE-FX
MAC	Yes
PHY	Yes
FMMUs	3
SYNC Manager	4
Distributed Clocks	64
DPRAM	4
Operating Voltage	3.300V
Ethernet Ports	Internal - 2
Temperature Range	-40°C to 105°C

Advanced Features

2/3-port EtherCAT device controller with 3 Fieldbus Memory Management Units (FMMUs) and 4 SyncManagers
Interfaces to 8/16-bit embedded controllers and 32-bit embedded controllers with an 8/16-bit bus
Dual Integrated Ethernet PHYs with HP Auto-MDIX
Cable diagnostic support for enhanced network reliability
100 Base FX support via external transceiver
1.8V to 3.3V variable voltage I/O for flexible power requirements
Integrated 1.2V core regulator for single 3.3V operation
Low pin count, high integration and small body size package
EtherCAT P - A fully compliant EtherCAT P example for UART communications and Motor Control
EtherCAT Cortex M4F design example - Using SAM E54 and LAN9252

Interface Capabilities

SPI and SQI (high speed SPI) provide a low pin count synchronous slave interface that facilitates communication between the device and a host system. The Host Bus Interface facilitates the same via a high-speed asynchronous slave interface. For simple digital modules without micro-controllers, the LAN9252 can also operate in Digital I/O Mode where 16 digital signals can be controlled or monitored by the EtherCAT master.
