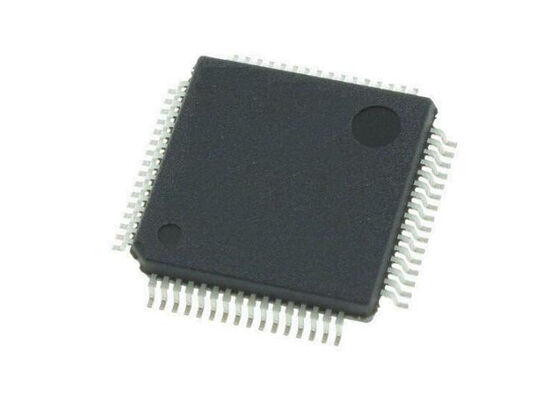

LAN9252/PT Ethernet IC 100BASE-TX/100BASE-FX EtherCAT Slave Controller TQFP64
The LAN9252/PT is a 2/3-port EtherCAT device controller (ESC) with dual integrated Ethernet PHYs, each containing a full-duplex 100BASE-TX transceiver and supporting 100Mbps (100BASE-TX) operation. This device supports HP Auto-MDIX for flexible cable connections and enables 100BASE-FX operation via an external fiber transceiver, providing a cost-effective solution for EtherCAT device implementations.
Technical Specifications
| Protocol |
Ethernet |
| Function |
Controller |
| Interface |
SPI |
| Standards |
10/100 Base-FX/T/TX PHY |
| Voltage - Supply |
1.8V ~ 3.3V |
| Operating Temperature |
0°C ~ 70°C |
| Package / Case |
64-TQFP Exposed Pad |
| Supplier Device Package |
64-TQFP-EP (10x10) |
Key Features
- 2/3-port EtherCAT SubDevice controller with 3 Fieldbus Memory Management Units (FMMUs) and 4 SyncManagers
- Interfaces with most 8/16-bit embedded controllers and 32-bit embedded controllers with 8/16-bit bus
- Integrated Ethernet PHYs with HP Auto-MDIX
- Wake on LAN (WoL) support
- Low power mode for system sleep until addressed by MainDevice
- Cable diagnostic support
- 1.8V to 3.3V variable voltage I/O
- Integrated 1.2V regulator for single 3.3V operation
- Low pin count and compact package design
Applications
Motor Motion Control, Process/Factory Automation, Communication Modules, Interface Cards, Sensors, Hydraulic and Pneumatic Valve Systems, Operator Interfaces
