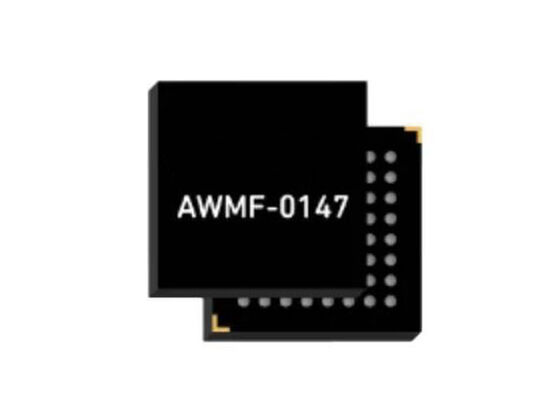

AWMF-0147 Wireless Communication Module 13.75GHz to 14.5GHz Ku-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation

AWMF-0147 Wireless Communication Module 13.75GHz to 14.5GHz Ku-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation
AWMF-0147 Wireless Communication Module 13.75GHz to 14.5GHz Ku-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation

Large Image :  AWMF-0147 Wireless Communication Module 13.75GHz to 14.5GHz Ku-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AWMF-0147
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WLCSP
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AWMF-0147 Wireless Communication Module 13.75GHz to 14.5GHz Ku-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation

Description
Part Number: AWMF-0147 Operating Supply Voltage: 1.2 V
Minimum Frequency: 13.75GHz Maximum Frequency: 14.5GHz
Package: WLCSP Type: Ku-Band Quad 4x2 Tx Beamformer IC
Highlight:

13.75GHz to 14.5GHz Wireless Communication Module

,

Quad 4x2 Tx Beamformer Ku-Band Beamformer IC

,

1.2V Operation RF Transmitter

AWMF-0147 Wireless Communication Module
13.75GHz to 14.5GHz Ku-Band Quad 4x2 Tx Beamformer IC
Product Overview
The AWMF-0147 is a highly integrated silicon quad core IC designed for satellite communications applications. This advanced device supports four dual polarization radiating elements with full polarization flexibility and includes comprehensive temperature management features.
Technical Specifications
Series AWMF
Product RF Transmitters
Frequency 13.75 GHz to 14.75 GHz
Operating Supply Voltage 1.2 V
Product Type RF Modules
Key Features
  • 13.75 to 14.5 GHz operation range
  • Supports 4 dual polarization radiating elements
  • Flexible polarization (RHCP, LHCP, linear)
  • 6-bit phase control capability
  • 5-bit gain control precision
  • Gain compensation over temperature
  • Integrated temperature reporting
  • Comprehensive telemetry reporting
  • WLCSP packaging for simplified thermal management
  • Low 1.2V operation
Latest Updates
  • 300 mm CMOS design for reduced manufacturing costs
  • Lower DC power consumption compared to Gen-1 ICs
  • Zero-Cal® phase/gain calibration-free operation
  • Kinetic Greena 3D beam steering for enhanced power efficiency
Related Electronic Components
We maintain an extensive inventory of complementary electronic components:
Part Number Package
5CGXBC7C6F23C7N FBGA-484
5CEBA7U19C7N FBGA-484
EP4CGX50DF27I7N FBGA-672
5AGXBA1D6F31C6G FBGA-896
5CGTFD5C5U19A7N FBGA-484
5AGXMA1D6F27C6G FCBGA-672
5CEFA9F27C8N FBGA-672
10CX220YU484I5G UBGA-484
10CX220YF672I6G FCBGA-672
5AGXMA1D6F31C6G FBGA-896
