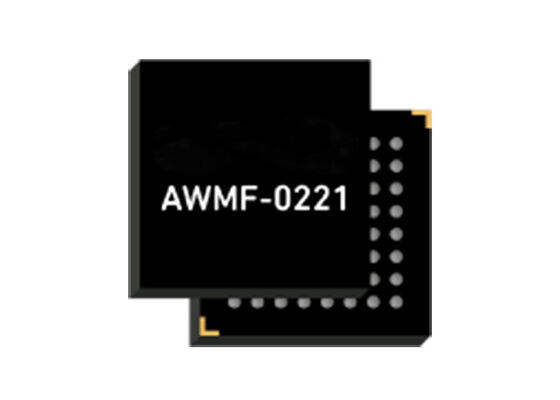

AWMF-0221 Wireless Communication Module 24.25 to 29.5 GHz Dual Polarization Quad Beamformer RF Beamforming IC

AWMF-0221 Wireless Communication Module 24.25 to 29.5 GHz Dual Polarization Quad Beamformer RF Beamforming IC
AWMF-0221 Wireless Communication Module 24.25 to 29.5 GHz Dual Polarization Quad Beamformer RF Beamforming IC

Large Image :  AWMF-0221 Wireless Communication Module 24.25 to 29.5 GHz Dual Polarization Quad Beamformer RF Beamforming IC

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AWMF-0221
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

AWMF-0221 Wireless Communication Module 24.25 to 29.5 GHz Dual Polarization Quad Beamformer RF Beamforming IC

Description
Part Number: AWMF-0221 Package: QFN
Operation: 24.25 To 29.5 GHz Type: Beamformer
Highlight:

24.25 to 29.5 GHz Wireless Communication Module

,

Dual Polarization RF Beamforming IC

,

Quad Beamformer BFIC

AWMF-0221 Wireless Communication Module 24GHz To 30GHz Dual Polarization Quad Beamformer
AWMF-0221 Wireless Communication Module 24GHz To 30GHz Dual Polarization Quad Beamformer
Product Overview
AWMF-0221 is a highly integrated silicon RF beamforming IC (BFIC) built on our proven quad channel, dual polarization CMOS platform. This modular architecture delivers industry leading antenna performance across multiple end user applications with benchmark linear RF power and DC power efficiency, seamlessly supporting higher signal bandwidths and modulations. Each BFIC includes beam steering controls for compliance with all 3GPP standards. Half duplex operation with dual polarization allows a single antenna aperture per sector coverage.
Key Features
  • Generation 4 IC family
  • 24.25 to 29.5 GHz operation
  • n258, n257, and n261 3GPP bands
  • Supports both 5G NR and 802.11ac/802.11ax waveforms
  • Higher linear power and improved efficiency
  • 4 dual polarization or 8 single polarization antenna configuration
  • Tx/Rx half duplex operation
  • Single antenna for Tx and Rx
  • Phase and gain control
  • Telemetry reporting
  • Fast beam steering
  • Zero-Cal® phase/gain calibration free
  • FC-CSP package
  • Calculate your 5G array size and specifications with our new array calculator
Applications
3GPP compliant 5G communications arrays in the n258, n257, and n261 bands
