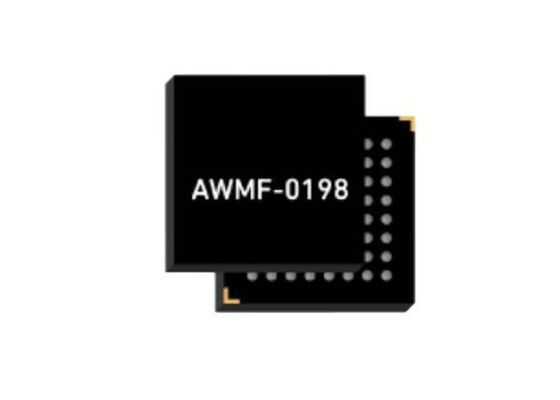

AWMF-0198 Wireless Communication Module 27.5GHz to 31.0GHz Ka-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation

AWMF-0198 Wireless Communication Module 27.5GHz to 31.0GHz Ka-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation
AWMF-0198 Wireless Communication Module 27.5GHz to 31.0GHz Ka-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation

Large Image :  AWMF-0198 Wireless Communication Module 27.5GHz to 31.0GHz Ka-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AWMF-0197
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WLCSP
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AWMF-0198 Wireless Communication Module 27.5GHz to 31.0GHz Ka-Band Quad 4x2 Tx Beamformer IC with 1.2V Operation

Description
Part Number: AWMF-0197 Operating Supply Voltage: 1.2 V
Minimum Frequency: 27.5GHz Maximum Frequency: 31.0GHz
Package: WLCSP Type: Ka-Band Quad 4x2 Tx Beamformer IC
Highlight:

27.5GHz to 31.0GHz Wireless Communication Module

,

Quad 4x2 Tx Beamformer Ka-Band Beamformer IC

,

1.2V Operation RF Transmitter

AWMF-0198 Wireless Communication Module
27.5GHz to 31.0GHz Ka-Band Quad 4x2 Tx Beamformer IC
Product Overview
The AWMF-0198 is a 27.5GHz to 31.0GHz Ka-Band Quad 4x2 Tx Beamformer IC that supports four dual polarization radiating elements with full polarization flexibility. Additional features include gain compensation over temperature and temperature reporting.
Technical Specifications
Series AWMF
Product RF Transmitters
Frequency 27.5 GHz to 31.0 GHz
Operating Supply Voltage 1.2 V
Product Type RF Modules
Key Features
  • 1.2V operation
  • 27.5 to 31 GHz operation
  • Supports 4 dual polarization radiating elements
  • Flexible polarization (RHCP, LHCP, linear)
  • 6-bit phase control
  • 5-bit gain control
  • Gain compensation over temperature
  • Temperature reporting
  • Telemetry reporting
  • WLCSP for simple thermal management
Latest Updates
  • 300 mm CMOS design for low cost
  • Lower DC power than Gen-1 ICs
  • Zero-Cal® phase/gain calibration free
  • Kinetic Greena 3D beam steering for additional power savings
