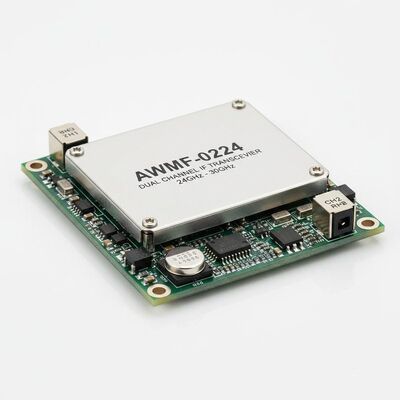

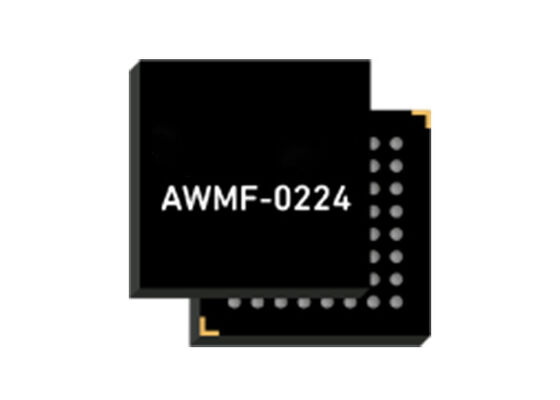

AWMF-0224 Wireless Communication Module 24GHz To 30GHz Dual Channel IF Transceiver with Integrated PLL/VCO LO Synthesizer

Description

Part Number:

AWMF-0224

Package:

BGA

Operation:

24GHz To 30GHz

Type:

IF Transceiver

Highlight:

24GHz To 30GHz Wireless Communication Module

Dual Channel IF Transceiver

Integrated PLL/VCO LO Synthesizer Wireless Communication Module

AWMF-0224 Wireless Communication Module 24GHz To 30GHz Dual Channel IF Transceiver

The AWMF-0224 represents the industry's first fully integrated dual channel IF up/down converter with integrated PLL/VCO LO synthesizer. This half-duplex IC combines dual Tx single-sideband up-conversion, dual Rx image-reject down-conversion functionality, and an on-chip LO synthesizer that enables 2T2R applications within a single die. An on-chip frequency multiplier simplifies board-level integration for use with either an internal frequency synthesizer or an external PLL.

Key Features

24.25 to 29.5 GHz operation range
n258, n257, and n261 3GPP bands compatibility
Dual channel support for dual polarization with single IC
On-chip LO synthesizer integration
On-chip selectable LO for multiple use cases
FC-CSP package with small footprint for low-cost arrays
Superior LO phase noise compared to commercial off-the-shelf components

Applications

3GPP compliant 5G communications arrays in the n258, n257, and n261 bands.
