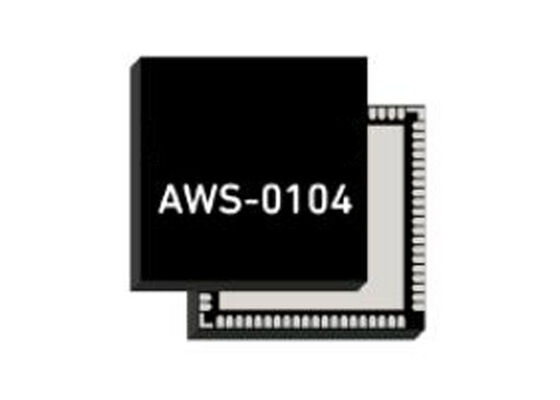

AWS-0104 Wireless Communication Module 8.5GHz to 10.55GHz X-Band Single Beam Tx/Rx Beamformer with 6-bit Phase and Gain Control

Description

Part Number:	AWS-0104	Polarisation:	Single
Minimum Frequency:	8.5GHz	Maximum Frequency:	10.55GHz
Package:	QFN	Type:	X-Band Single Beam Tx/Rx Beamformer
Highlight:	8.5GHz to 10.55GHz Wireless Communication Module , Single Beam X-Band Beamformer , 6-bit Phase and Gain Control Tx/Rx Beamformer

AWS-0104 Wireless Communication Module

8.5GHz To 10.55GHz X-Band Single Beam Tx/Rx Beamformer

The AWS-0104 is a highly integrated silicon quad core IC designed for radar and 5G phased array applications. This wireless communication module supports four radiating elements with single beam transmit and receive capabilities, featuring comprehensive beam steering controls including 6-bit phase and gain control for precise beam steering and shaping.

Product Overview

When combined with a T/R switch, the BFIC serves as a plug-and-play antenna solution that significantly reduces SWaP-C (Size, Weight, Power, and Cost) for low power AESA radars. The beamforming integrated circuit features direct SPI programming of gain and phase, along with daisy chain SPI control capability between multiple ICs. It operates from a single positive power supply.

Technical Specifications

Frequency Range	8.5GHz to 10.55GHz
Type	Transmit/Receive
Polarization	Single
Target Application	Radar Systems
Package Type	QFN

Key Features

8.5 to 10.55 GHz operational frequency range
Supports 4 radiating elements
Single beam receive capability
Single beam transmit capability
Low noise figure for enhanced performance
6-bit phase and gain control
Fast beam steering functionality

Available Electronic Components

Part Number	Package
1SG040HH3F35I2VG	1152-FBGA
1SG065HH3F35E3VG	1152-FBGA
1SG040HH3F35E2LG	1152-FBGA
1SG040HH3F35E3XG	1152-FBGA
5AGXBB7D6F40C6G	1517-BBGA
1SG040HH2F35E1VG	1152-BBGA
1SG040HH1F35E2VG	1152-BBGA
1ST040EH3F35I3VG	1152-BBGA
1SG040HH3F35I1VG	1152-BBGA
5AGXMB7G6F35C6G	1152-BBGA
1SG040HH2F35I2VG	1152-BBGA
5AGXFB5H4F35C5G	1152-FBGA
1SG065HH3F35I3VG	1152-BBGA
1SG065HH3F35E2VG	1152-BBGA
1SG040HH2F35E2LG	1152-BBGA
1SG040HH3F35I2LG	1152-BBGA
EP4SGX70HF35C2G	1152-FBGA
1SG040HH3F35I3XG	1152-BBGA
1SG040HH1F35E1VG	1152-BBGA
1SG040HH2F35I1VG	1152-FBGA
1SG040HH1F35I2VG	1152-BBGA
5AGXMB5G4F40C4G	1517-BBGA
5AGXMB5G4F40I5G	1517-BBGA
5AGXFB7K6F40C6G	1517-BBGA
1SG065HH3F35E1VG	1152-BBGA
5AGXBB7D4F40C5G	1517-BBGA
1SG040HH1F35E2LG	1152-BBGA
5AGXFB5H4F35C4G	1152-FBGA
5AGZME1E2H29I3LG	780-BBGA
5AGXFB5H4F35I5G	1152-BBGA
