AWMF-0146 Wireless Communication Module High Integrated Silicon Ku-Band Rx Beamformer with 10.7 to 12.75 GHz Operation and 4 Dual Polarization Elements

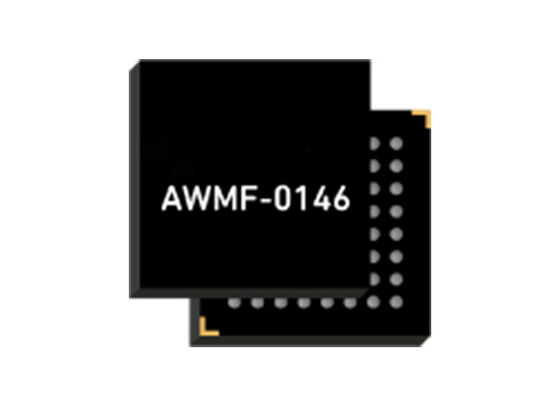

Large Image : AWMF-0146 Wireless Communication Module High Integrated Silicon Ku-Band Rx Beamformer with 10.7 to 12.75 GHz Operation and 4 Dual Polarization Elements

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AWMF-0146

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	BGA
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

AWMF-0146 Wireless Communication Module High Integrated Silicon Ku-Band Rx Beamformer with 10.7 to 12.75 GHz Operation and 4 Dual Polarization Elements

Description

Part Number:

AWMF-0146

Package:

BGA

Type:

Rx Beamformer

Operation:

10.7 To 12.75 GHz

Highlight:

10.7 to 12.75 GHz operation Wireless Communication Module

Highly Integrated Silicon Rx Beamformer

4 dual polarization radiating elements Ku-Band SATCOM IC

AWMF-0146 Wireless Communication Module High Integrated Silicon Ku-Band Quad Rx Beamformer

The AWMF-0146 is a highly integrated silicon quad core IC designed for satellite communications applications. This advanced device supports four dual polarization radiating elements with full polarization flexibility and includes gain compensation over temperature with temperature reporting capabilities.

Product Overview

The AWMF-0146 features ESD protection on all pins, operates from a +1.2V supply, and is packaged in a WLCSP (Wafer Level Chip Scale Package) for easy installation in planar phased array antennas. The 2nd generation Ku-Band SATCOM beamformer IC family enables active antenna SATCOM ground terminals that can auto-align and auto-position, supporting SATCOM-on-the-move using LEO/MEO/GEO satellites.

Key Features

10.7 to 12.75 GHz operation frequency
Supports 4 dual polarization radiating elements
Flexible polarization (RHCP, LHCP, linear)
6-bit phase control / 5-bit gain control
Gain compensation over temperature
Temperature reporting capabilities
Calculate your SATCOM array size and specifications with our new array calculator

Applications

Flat panel SATCOM systems using LEO/MEO/GEO satellites
