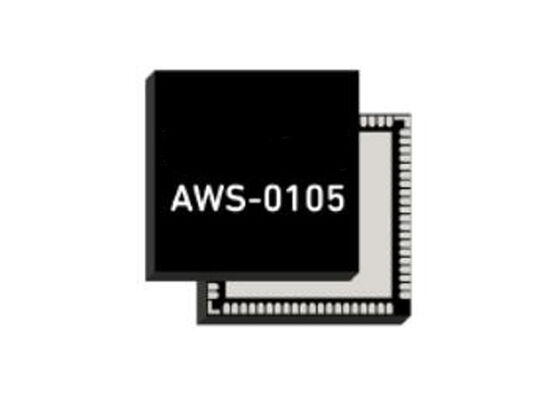

AWS-0105 Wireless Communication Module
8.5GHz to 10.55GHz X-Band Single Beam Tx/Rx Beamformer
Product Overview
The AWS-0105 is a highly integrated silicon quad core IC designed for radar and 5G phased array applications. This device supports four radiating elements with single beam transmit and receive capabilities, featuring comprehensive beam steering controls including 6-bit phase and gain control for precise beam steering and shaping.
When paired with the AWMF-0106 X-Band Front End IC, the AWS-0105 provides a plug-and-play antenna solution that significantly reduces SWaP-C (Size, Weight, Power, and Cost) for high power AESA radars. The BFIC features direct SPI programming of gain and phase, with daisy chain SPI control capability between multiple ICs, and operates from a single positive power supply.
Technical Specifications
| Frequency Range |
8.5GHz to 10.55GHz |
| Type |
Transmit/Receive |
| Polarization |
Single |
| Target Application |
Radar Systems |
| Package Type |
QFN |
Key Features
- 8.5GHz to 10.55GHz operational frequency range
- Supports 4 radiating elements
- Single beam receive capability
- Single beam transmit capability
- High linearity performance
- 6-bit phase and gain control
- Fast beam steering functionality
Applications
- Commercial Radar Systems
- Weather Radar Systems
- 5G Communications Infrastructure
