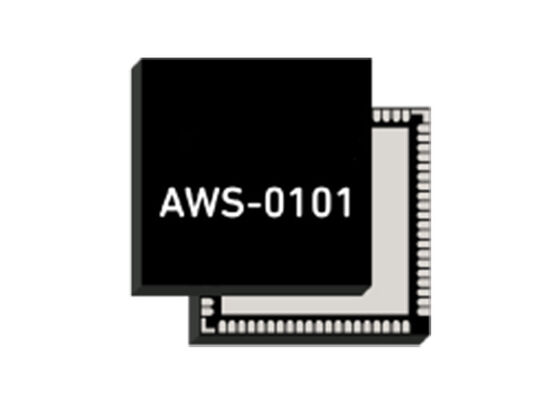

AWS-0101 Wireless Communication Module X-Band Beamformer with 8.5 to 10.55 GHz Operation Dual Rx Single Tx

AWS-0101 Wireless Communication Module X-Band Beamformer with 8.5 to 10.55 GHz Operation Dual Rx Single Tx
AWS-0101 Wireless Communication Module X-Band Beamformer with 8.5 to 10.55 GHz Operation Dual Rx Single Tx

Large Image :  AWS-0101 Wireless Communication Module X-Band Beamformer with 8.5 to 10.55 GHz Operation Dual Rx Single Tx

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AWS-0101
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AWS-0101 Wireless Communication Module X-Band Beamformer with 8.5 to 10.55 GHz Operation Dual Rx Single Tx

Description
Part Number: AWS-0101 Package: QFN
Type: Beamformer Operation: 8.5 To 10.55 GHz
Highlight:

8.5 to 10.55 GHz operation Wireless Communication Module

,

Dual beam Rx Beamformer

,

Single beam Tx X-Band Module

AWS-0101 Wireless Communication Module
8.5GHz to 10.55GHz X-Band Dual Rx Single Tx Beamformer
Product Overview
The AWS-0101 is a highly integrated silicon quad core IC designed for radar and 5G phased array applications. This device supports four radiating elements with single beam transmit and dual beam receive capabilities, including comprehensive beam steering controls with 6-bit phase and gain control for precise beam steering and shaping.
When paired with a T/R switch, the BFIC provides a plug-and-play antenna solution that significantly reduces SWaP-C (Size, Weight, Power, and Cost) for low power AESA radars. The BFIC features direct SPI programming of gain and phase, along with daisy chain SPI control capability between multiple ICs. It operates from a single positive power supply.
Key Features
  • 8.5 to 10.55 GHz operational frequency
  • Supports 4 radiating elements
  • Dual beam receive capability
  • Single beam transmit
  • Low noise figure
  • 6-bit phase and gain control
  • Fast beam steering
Applications
Commercial and Weather Radars, 5G Communications
