IDD08SG60C 600V 8A CoolSiC Schottky Diode Integrated Circuit Chip with Lowest Device Capacitance

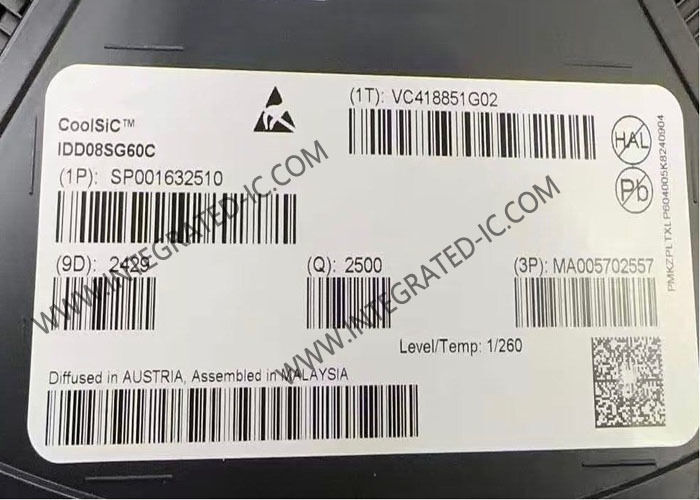

Large Image : IDD08SG60C 600V 8A CoolSiC Schottky Diode Integrated Circuit Chip with Lowest Device Capacitance

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IDD08SG60C

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-TO252-3
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

IDD08SG60C 600V 8A CoolSiC Schottky Diode Integrated Circuit Chip with Lowest Device Capacitance

Description

Part Number:	IDD08SG60C	Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	8A	Voltage - Forward (Vf) (Max) @ If:	2.1 V @ 8 A
Current - Reverse Leakage @ Vr:	70 µA @ 600 V	Capacitance @ Vr, F:	240pF @ 1V, 1MHz
Highlight:	600V Schottky Diode , 8A CoolSiC Diode , Lowest Device Capacitance Integrated Circuit Chip

IDD08SG60C Integrated Circuit Chip 600V 8A CoolSiC™ Schottky Diodes TO-252-3

Product Overview

The IDD08SG60C is a 600V CoolSiC™ Schottky Diode featuring the industry's lowest device capacitance for any given current rating. This advanced technology enhances overall system efficiency, particularly at higher switching frequencies and under low load conditions. Generation 3 builds upon the proven technology platform of generation 2 with the introduction of diffusion soldering at the package level.

Technical Specifications

Parameter	Value
Mounting Style	SMD/SMT
Package / Case	DPAK-2 (TO-252-3)
Configuration	Single
Forward Current (If)	8 A
Repetitive Reverse Voltage (Vrrm)	600 V
Forward Voltage (Vf)	2.1 V
Forward Surge Current (Ifsm)	42 A
Reverse Current (Ir)	70 uA
Minimum Operating Temperature	-55℃
Maximum Operating Temperature	+175℃
Product Type	SiC Schottky Diodes

Key Features

Revolutionary semiconductor material - Silicon Carbide
Benchmark switching behavior
No reverse recovery / No forward recovery
Temperature independent switching behavior
High surge current capability
Pb-free lead plating; RoHS compliant
Qualified according to JEDEC for target applications
Breakdown voltage tested at 20mA
Optimized for high temperature operation
Lowest Figure of Merit QC/IF

Applications

Smart speaker designs

LED lighting system design
