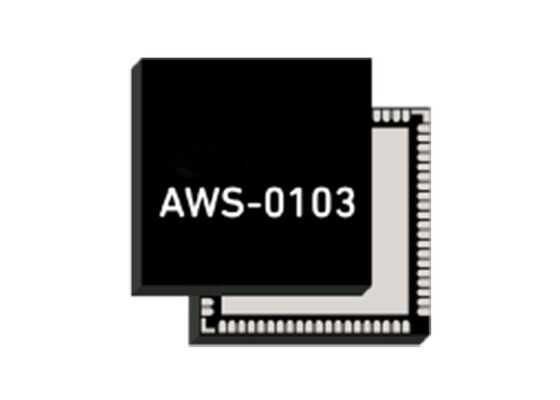

AWS-0103 Wireless Communication Module X-Band Beamformer with 8.5 to 10.55 GHz Operation Dual Beam Rx and 6-bit Phase Gain Control

Large Image : AWS-0103 Wireless Communication Module X-Band Beamformer with 8.5 to 10.55 GHz Operation Dual Beam Rx and 6-bit Phase Gain Control

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AWS-0103

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

AWS-0103 Wireless Communication Module X-Band Beamformer with 8.5 to 10.55 GHz Operation Dual Beam Rx and 6-bit Phase Gain Control

Description

Part Number:

AWS-0103

Package:

QFN

Type:

Beamformer

Operation:

8.5 To 10.55 GHz

Highlight:

8.5 to 10.55 GHz Operation Wireless Communication Module

Dual Beam Rx Beamformer

6-bit Phase and Gain Control X-Band Module

AWS-0103 Wireless Communication Module

High Integrated X-Band Dual Rx Single Tx Beamformer

The AWS-0103 is a highly integrated silicon quad core IC designed for radar and 5G phased array applications. This advanced device supports four radiating elements with single beam transmit and dual beam receive capabilities, incorporating comprehensive beam steering controls including 6-bit phase and gain control for precise beam steering and shaping.

Key Features

Operating frequency: 8.5 to 10.55 GHz
Supports 4 radiating elements
Dual beam receive capability
Single beam transmit operation
High linearity performance
6-bit phase and gain control
Fast beam steering functionality

Applications

Commercial and Weather Radars
5G Communications Systems
