QPF0219 Wireless Communication Module 2-18 GHz Wide-Band 10 Watt Transmit Power with GaN-on-SiC Technology

QPF0219 Wireless Communication Module 2-18 GHz Wide-Band 10 Watt Transmit Power with GaN-on-SiC Technology
QPF0219 Wireless Communication Module 2-18 GHz Wide-Band 10 Watt Transmit Power with GaN-on-SiC Technology QPF0219 Wireless Communication Module 2-18 GHz Wide-Band 10 Watt Transmit Power with GaN-on-SiC Technology

Large Image :  QPF0219 Wireless Communication Module 2-18 GHz Wide-Band 10 Watt Transmit Power with GaN-on-SiC Technology

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: QPF0219
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

QPF0219 Wireless Communication Module 2-18 GHz Wide-Band 10 Watt Transmit Power with GaN-on-SiC Technology

Description
Part Number: QPF0219 Package: QFN
Type: Transmit/Receive Module Operation: 2GHz To 18GHz
Highlight:

2-18 GHz Wide-Band Wireless Communication Module

,

10 Watt Transmit Power Front-End Module

,

GaN-on-SiC Technology FEM

QPF0219 Wireless Communication Module
2GHz to 18GHz 10 Watt Transmit/Receive Module for Wide-Band Radar Applications
Product Overview

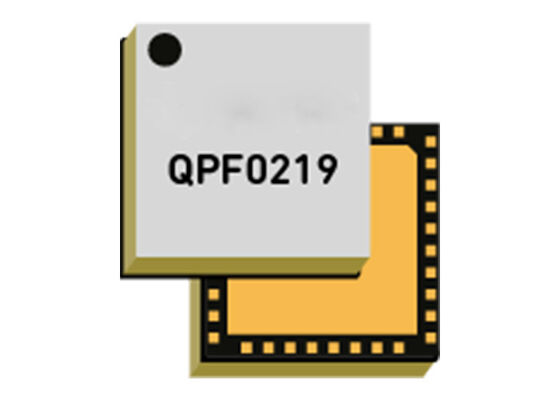

The QPF0219 is a multi-chip Front-End Module (FEM) specifically engineered for 2-18 GHz wide-band radar systems. This advanced module integrates a T/R switch, limiter, low-noise amplifier, and power amplifier in a single compact package.
Transmit power reaches 10 W saturated with 20% PAE and large signal gain of 13 dB (19 dB small signal). Receiver performance includes 4 dB noise figure, 14 dB small signal gain, and 21 dBm P1 dB.
The multi-die FEM utilizes optimal semiconductor technologies for each functional block: GaN-on-SiC for the power amplifier and T/R switch, and GaAs for the limiter and LNA. Housed in an 8 x 8 mm air cavity QFN package, the QPF0219 delivers exceptional performance in a minimal footprint.
Key Specifications
Frequency Range: 2-18 GHz
TX PSAT: 10 W
TX PAE: 20%
TX Gain: 19 dB
RX Gain: 14 dB
RX NF: 4 dB
RX P1dB: 21 dBm
Applications
Communications Systems
Commercial and Military Radar
