Part Number:	AD9361BBC-CSH	TX Band:	47 MHz To 6.0 GHz
RX Band:	70 MHz To 6.0 GHz	Tunable Channel Bandwidth:	<200 KHz To 56 MHz
TX EVM:	≤−40 DB	TX Monitor:	≥66 DB Dynamic Range With 1 DB Accuracy
Highlight:	47 MHz to 6.0 GHz TX band Wireless Communication Module , 70 MHz to 6.0 GHz RX band RF Agile Transceiver , Tunable channel bandwidth AD9361BBC-CSH

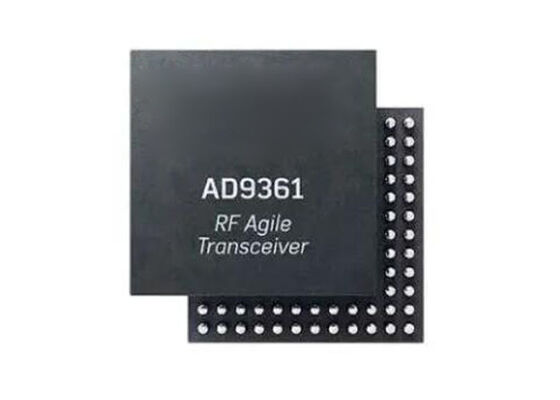

AD9361BBC-CSH Wireless Communication Module RF Agile Transceiver CSPBGA144

The AD9361BBC-CSH is a high-performance, highly integrated RF Agile Transceiver™ designed for 3G and 4G base station applications. Its exceptional programmability and wideband capability make it ideal for diverse transceiver applications across multiple frequency bands.

Product Overview

This advanced transceiver integrates an RF front end with a flexible mixed-signal baseband section and frequency synthesizers, providing a configurable digital interface to processors for simplified system integration. The receiver LO operates from 70 MHz to 6.0 GHz while the transmitter LO covers 47 MHz to 6.0 GHz, supporting most licensed and unlicensed bands with channel bandwidths from less than 200 kHz to 56 MHz.

Key Features

RF 2 * 2 transceiver with integrated 12-bit DACs and ADCs
TX band: 47 MHz to 6.0 GHz
RX band: 70 MHz to 6.0 GHz
Supports TDD and FDD operation
Tunable channel bandwidth: <200 kHz to 56 MHz
Dual receivers: 6 differential
Superior receiver sensitivity with 2 dB noise figure at 800 MHz LO
RX gain control with real-time monitoring
Independent automatic gain control
Dual transmitters: 4 differential outputs
Highly linear broadband transmitter
TX EVM: ≤−40 dB
TX noise: ≤−157 dBm/Hz noise floor
TX monitor: ≥66 dB dynamic range with 1 dB accuracy
Integrated fractional-N synthesizers
2.4 Hz maximum local oscillator (LO) step size
Multichip synchronization
CMOS/LVDS digital interface

Applications

Point-to-point communication systems
Femtocell/picocell/microcell base stations
General-purpose radio systems
