AWMF-0247 Ku-Band Quad Tx/Rx Beamformer IC Wireless Communication Module with TDD Half-Duplex Capability

AWMF-0247 Ku-Band Quad Tx/Rx Beamformer IC Wireless Communication Module with TDD Half-Duplex Capability
AWMF-0247 Ku-Band Quad Tx/Rx Beamformer IC Wireless Communication Module with TDD Half-Duplex Capability AWMF-0247 Ku-Band Quad Tx/Rx Beamformer IC Wireless Communication Module with TDD Half-Duplex Capability

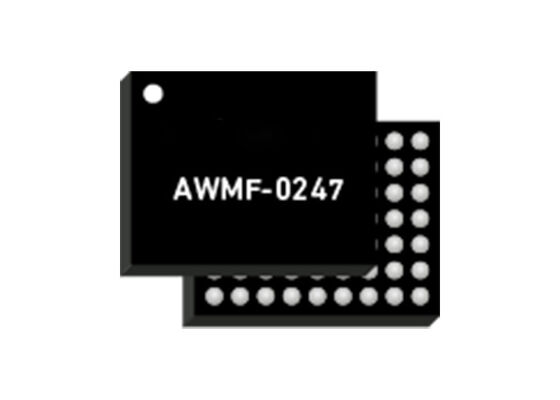

Large Image :  AWMF-0247 Ku-Band Quad Tx/Rx Beamformer IC Wireless Communication Module with TDD Half-Duplex Capability

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AWMF-0247
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: BGA
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AWMF-0247 Ku-Band Quad Tx/Rx Beamformer IC Wireless Communication Module with TDD Half-Duplex Capability

Description
Part Number: AWMF-0247 Package: BGA
Tx Operation: 13.75GHz To 14.5GHz Rx Operation: 10.7GHz To 12.75GHz
Highlight:

Ku-Band Wireless Communication Module

,

Quad Tx/Rx Beamformer IC

,

TDD Half-Duplex Ku-Band Beamformer

AWMF-0247 Wireless Communication Module Ku-Band Quad Tx/Rx Beamformer IC
Product Overview

The AWMF-0247 Ku-Band Quad 4x1 Tx/Rx Beamformer IC features TDD half-duplex capability, enabling both transmit and receive functions in a single device. This advanced capability allows flat panel SATCOM terminals to utilize a shared antenna aperture, significantly reducing system size and component count compared to traditional dual-antenna designs.

The Qorvo AWMF-0247 supports four antenna elements across the 13.75GHz to 14.5GHz transmit band and 10.7GHz to 12.75GHz receive band. The device combines adjustable power amplifier bias for efficient linear transmit power with low noise figure for enhanced receive sensitivity, delivering a compact, power-efficient solution ideal for low Earth orbit (LEO) and non-terrestrial network (NTN) terminals.

Key Features
  • 13.75GHz to 14.5GHz Tx operation
  • 10.7GHz to 12.75GHz Rx operation
  • Supports four antenna elements with fixed polarization
  • 10dBm Tx output power per port
  • 27dB Tx gain per channel
  • 30dB Rx coherent gain
  • 6-bit phase control (5.625° LSB)
  • 6-bit gain control (0.25dB LSB)
  • Telemetry reporting capabilities
Applications

SATCOM Flat Panel terminals for low-cost LEO and emerging NTN systems

Available Electronic Components
Part Number Package
ADSP-BF707KBCZ-3BGA-184
LTC5800IWR-WHMAQFN-72
SIWG917M110LGTBAQFN-84
PVGA-273QFN-32
MAC-24SMD
MCA1-42SMD
MPGA-105MCLP-8
MSWA2-50QFN-12
TAMP-242GLNSMD
MAC-24MHSMD
LVA-6183PNQFN-24
PMA3-10203QFN-16
PMA3-5153QFN-16
MAC-12GSMD
CD8070604480301SFCLGA-4189
CD8068904570101SFCLGA-4189
CD8068904570201SFCLGA-4189
CD8068904571501SFCLGA-4189
CD8068904571901SFCLGA-4189
CD8068904582501SFCLGA-4189
CD8068904572302SFCLGA-4189
CD8068904582702SFCLGA-4189
CD8068904582803SFCLGA-4189
CD8068904599101SFCLGA-4189
CD8068904642802SFCLGA-4189
CD8070604480401SFCLGA-4189
CD8070604480501SFCLGA-4189
CD8070604480601SFCLGA-4189
CD8070604481002SFCLGA-4189
CD8070604481201SFCLGA-4189
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample orders and small orders. Sample cost varies according to your order or project requirements.
How to ship my order? Is it safe?
We use express carriers such as DHL, FedEx, UPS, TNT, and EMS. We can also use your suggested forwarder. Products are carefully packaged to ensure safety, and we take responsibility for any damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. For items not in stock, we will confirm the lead time based on your order quantity.
