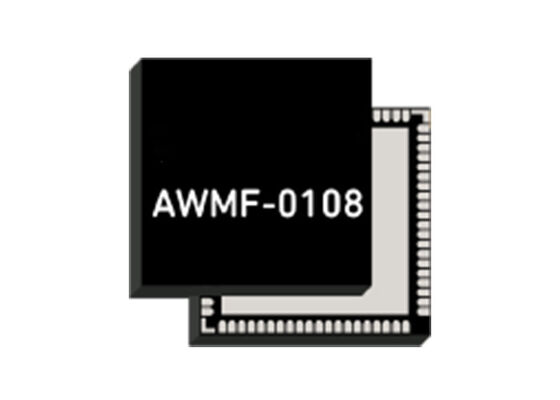

AWMF-0108 Wireless Communication Module 26.5GHz To 29.5GHz Single Polarization Quad Beamformer for 5G Phased Arrays

AWMF-0108 Wireless Communication Module 26.5GHz To 29.5GHz Single Polarization Quad Beamformer for 5G Phased Arrays
AWMF-0108 Wireless Communication Module 26.5GHz To 29.5GHz Single Polarization Quad Beamformer for 5G Phased Arrays AWMF-0108 Wireless Communication Module 26.5GHz To 29.5GHz Single Polarization Quad Beamformer for 5G Phased Arrays

Large Image :  AWMF-0108 Wireless Communication Module 26.5GHz To 29.5GHz Single Polarization Quad Beamformer for 5G Phased Arrays

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AWMF-0108
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-48
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AWMF-0108 Wireless Communication Module 26.5GHz To 29.5GHz Single Polarization Quad Beamformer for 5G Phased Arrays

Description
Part Number: AWMF-0108 Package: QFN-48
Operation: 26.5 To 29.5 GHz Operates: 1.8 V
Highlight:

26.5 to 29.5 GHz Wireless Communication Module

,

Single Polarization Wireless Communication Module

,

Quad Beamformer 5G Phased Array IC

AWMF-0108 Wireless Communication Module 26.5GHz To 29.5GHz Single Polarization Quad Beamformer
Product Overview
The AWMF-0108 is a highly integrated silicon quad core IC designed for 5G phased array applications. This device supports four Tx/Rx radiating elements and includes 5-bit phase and 5-bit gain control for analog RF beam steering. Operating in half-duplex mode, it enables a single antenna to support both transmission and reception. Additional features include gain compensation over temperature, temperature reporting, Tx power telemetry, and fast beam switching. The device features ESD protection on all pins, operates from +1.8V, and is packaged in a 48-lead 6x6mm QFN for easy installation in planar phased array antennas.
Key Features
  • 26.5 to 29.5 GHz operation frequency
  • n257 and n261 3GPP bands compatibility
  • Supports 4 radiating elements
  • Tx/Rx half-duplex operation
  • Single antenna for transmission and reception
  • Precise phase and gain control
  • Fast beam steering capability
Applications
3GPP compliant 5G communications arrays in the n257 and n261 bands
