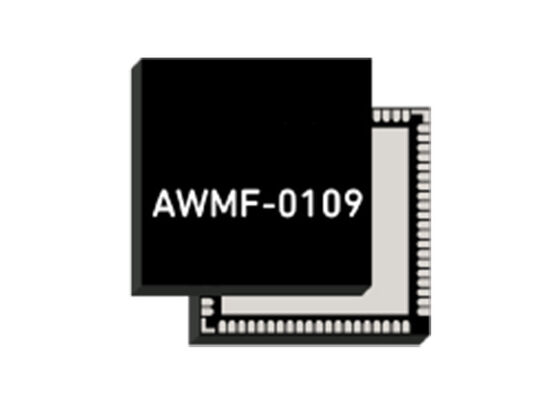

AWMF-0109 Wireless Communication Module High Integrated Silicon Quad Ka-Band Tx Beamformer
Product Overview
The AWMF-0109 is a highly integrated silicon quad core IC designed for satellite communications applications. This advanced device supports four dual polarization radiating elements with fully programmable polarization flexibility. Additional capabilities include gain compensation over temperature and temperature reporting. The chip features ESD protection on all pins, operates from a +1.8 V supply, and is packaged in a 48 lead 6x6 mm QFN for straightforward installation in planar phased array antennas.
Key Features
- 27.5 to 30 GHz operation frequency
- Supports 4 dual polarization radiating elements
- Flexible polarization (RHCP, LHCP, linear)
- 5-bit phase and gain control
- Gain compensation over temperature
- Temperature reporting capability
Applications
Ideal for flat panel SATCOM systems using LEO/MEO/GEO satellites.
