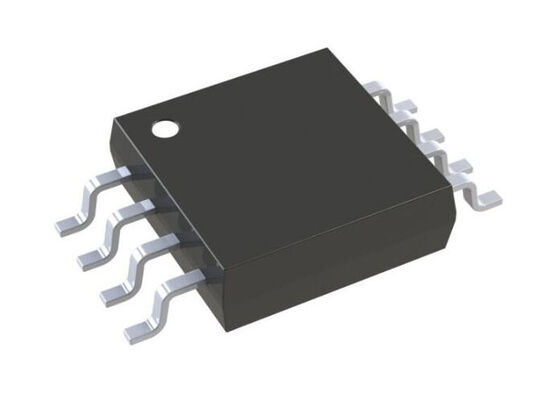

NCV2333DMR2G Integrated Circuit Chip Rail-To-Rail Zero-Drift Operational Amplifier MSOP8
The NCV2333DMR2G Zero-Drift Operational Amplifier features exceptionally low offset voltage of just 10 μV across the 1.8 V to 5.5 V supply voltage range. Its zero-drift architecture minimizes offset drift to as low as 0.07 μV/°C, enabling high-precision measurements over time and temperature variations.
This amplifier offers low power consumption across a wide dynamic range and is available in space-saving packages, making it ideal for signal conditioning circuits in portable, industrial, automotive, medical, and consumer applications.
Specifications
| Parameter |
Value |
| Amplifier Type |
Zero-Drift |
| Number of Circuits |
2 |
| Output Type |
Rail-to-Rail |
| Slew Rate |
0.15V/μs |
| Gain Bandwidth Product |
270 kHz |
| -3dB Bandwidth |
60 kHz |
| Input Bias Current |
60 pA |
| Input Offset Voltage |
6 μV |
| Supply Current |
28μA (x2 Channels) |
| Output Current per Channel |
11 mA |
| Minimum Supply Voltage |
1.8 V |
| Maximum Supply Voltage |
5.5 V |
| Operating Temperature |
-40°C to 125°C |
| Mounting Type |
Surface Mount |
| Package/Case |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
Key Features
• Gain-Bandwidth Product: 270 kHz (NCx2333)
• Low Supply Current: 17 μA typical at 3.3 V
• Low Offset Voltage: 10 μV max for NCS333, NCS333A
• Low Offset Drift: 0.07 μV/°C max for NCS333/A
• Wide Supply Range: 1.8 V to 5.5 V
• Wide Temperature Range: -40°C to +125°C
• Rail-to-Rail Input and Output
• Available in Single, Dual and Quad Packages
Applications
• Automotive Systems
• Battery Powered/Portable Applications
• Sensor Signal Conditioning
• Low Voltage Current Sensing
• Filter Circuits
• Bridge Circuits
• Medical Instrumentation
