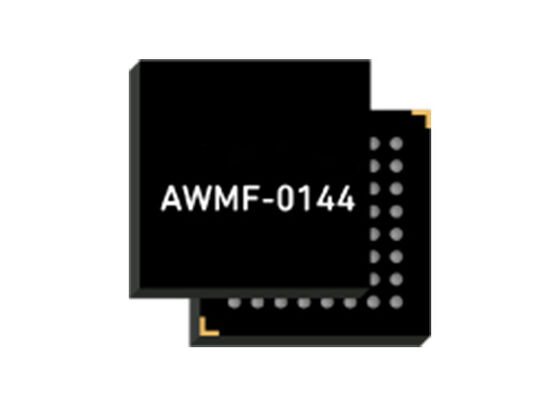

AWMF-0144 Wireless Communication Module High Integrated Single Polarization Quad Tx Beamformer
The AWMF-0144 is a highly integrated silicon quad core Tx IC designed for 5G phased array applications. This advanced device supports four radiating elements and incorporates 5-bit phase control and 5-bit gain control for precise analog RF beam steering.
Product Overview
The AWMF-0144 includes comprehensive features such as gain compensation over temperature, temperature reporting, Tx power telemetry, and fast beam switching utilizing on-chip beam weight storage registers. Engineered with ESD protection on all pins, the device operates from +1.8V and 2.5V power supplies and is packaged in a WLCSP (wafer level chip scale package) for simplified flip chip installation in planar phased array antennas.
Key Features
- 37.1 to 40 GHz operation frequency
- n260 3GPP band compatibility
- Supports 4 radiating elements
- 5-bit phase and gain control
- Fast beam steering capabilities
- WLCSP package for easy flip-chip installation
Applications
Designed for 3GPP compliant 5G communications arrays operating in the n260 band.
