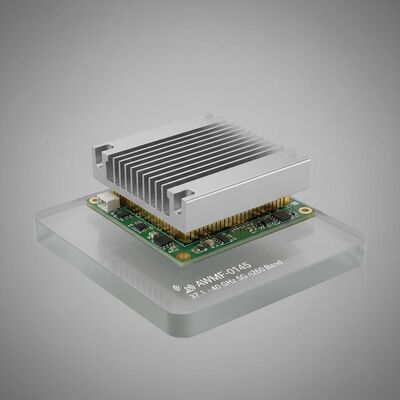

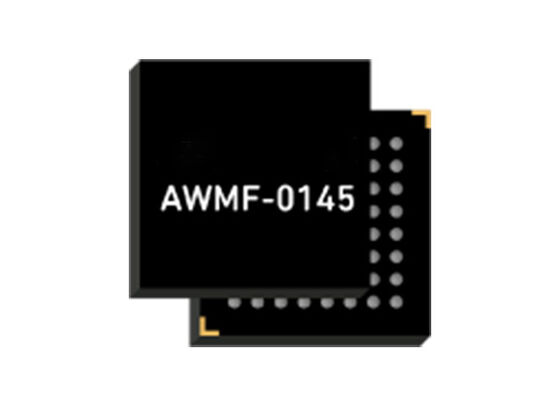

AWMF-0145 Wireless Communication Module 37GHz To 40GHz Single Polarization Quad Rx Beamformer
Product Overview
The AWMF-0145 is a highly integrated silicon quad core Rx IC designed for 5G phased array applications. This advanced device supports four radiating elements and incorporates 5-bit phase control and 5-bit gain control for precise analog RF beam steering. Key features include gain compensation over temperature, temperature reporting, Tx power telemetry, and fast beam switching using on-chip beam weight storage registers. The device includes ESD protection on all pins, operates from +1.8V and 2.5V supplies, and is packaged in a WLCSP (wafer level chip scale package) for simplified flip chip installation in planar phased array antennas.
Key Features
- 37.1 to 40 GHz operating frequency
- n260 3GPP band compatibility
- Supports 4 radiating elements
- 5-bit phase and gain control
- Fast beam steering capability
- WLCSP package for easy flip-chip installation
Applications
3GPP compliant 5G communications arrays operating in the n260 band.
