AWMF-0158 Wireless Communication Module 26.5 to 29.5 GHz Single Polarization Fast Beam Steering 5G Phased Array IC

AWMF-0158 Wireless Communication Module 26.5 to 29.5 GHz Single Polarization Fast Beam Steering 5G Phased Array IC
AWMF-0158 Wireless Communication Module 26.5 to 29.5 GHz Single Polarization Fast Beam Steering 5G Phased Array IC AWMF-0158 Wireless Communication Module 26.5 to 29.5 GHz Single Polarization Fast Beam Steering 5G Phased Array IC

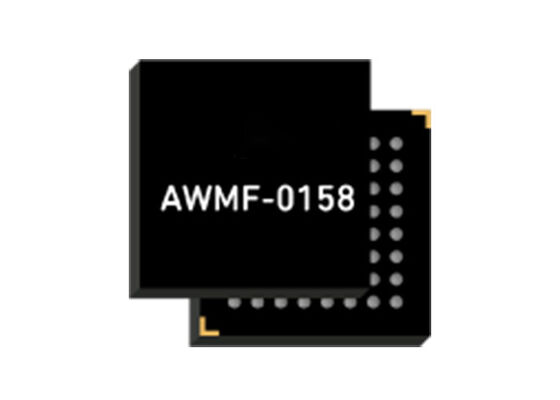

Large Image :  AWMF-0158 Wireless Communication Module 26.5 to 29.5 GHz Single Polarization Fast Beam Steering 5G Phased Array IC

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AWMF-0158
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WLCSP
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AWMF-0158 Wireless Communication Module 26.5 to 29.5 GHz Single Polarization Fast Beam Steering 5G Phased Array IC

Description
Part Number: AWMF-0158 Frequency Min: 26.5GHz
Frequency Max: 29.5GHz Type: Transmit/Receive
Polarization: Single Target Application: 5G
Highlight:

26.5 to 29.5 GHz Wireless Communication Module

,

Single Polarization 5G Phased Array IC

,

Fast Beam Steering Silicon Quad Core Beamformer

AWMF-0158 Wireless Communication Module
High Integrated Silicon Quad Core Single Polarization Beamformer for 5G phased array applications
Product Overview
The AWMF-0158 is a highly integrated silicon quad core IC designed for 5G phased array systems. This advanced device supports four Tx/Rx radiating elements and includes comprehensive beam steering controls for phase and gain management. Operating in half duplex mode, it enables single antenna support for both transmission and reception operations.
Key integrated features include gain compensation over temperature, temperature reporting, Tx power telemetry, and rapid beam switching utilizing on-chip beam weight storage registers. The device incorporates ESD protection on all pins, operates from +1.8V and +2.5V power supplies, and is packaged in WLCSP (wafer level chip scale package) for streamlined flip chip installation in planar phased array antennas.
As part of the Gen-2 5G IC family, these components represent the first commercially available 3GPP compliant integrated circuits for 5G applications.
Key Features
  • Operating frequency: 26.5 to 29.5 GHz
  • n257 and n261 3GPP band compatibility
  • Supports 4 radiating elements
  • Tx/Rx half duplex operation
  • Single antenna for transmission and reception
  • Precise phase and gain control
  • Fast beam steering capabilities
Applications
3GPP compliant 5G communications arrays operating in the n257 and n261 frequency bands
