ADRV9104BBCZ Integrated Circuit Chip RF Transceiver with 70 MHz to 6000 MHz Frequency Range and BGA-196 Package

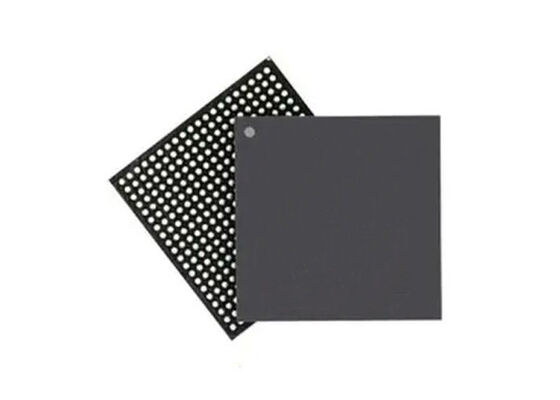

Large Image : ADRV9104BBCZ Integrated Circuit Chip RF Transceiver with 70 MHz to 6000 MHz Frequency Range and BGA-196 Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ADRV9104BBCZ

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	BGA-196
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ADRV9104BBCZ Integrated Circuit Chip RF Transceiver with 70 MHz to 6000 MHz Frequency Range and BGA-196 Package

Description

Part Number:

ADRV9104BBCZ

Operating Frequency Range:

70 MHz To 6000 MHz

Signal Bandwidth:

12 KHzto 40 MHz

Package:

BGA-196

Highlight:

70 MHz to 6000 MHz RF Transceiver

12 kHz to 40 MHz Integrated Circuit Chip

BGA-196 Package Application Processor

ADRV9104BBCZ Integrated Circuit Chip Narrow-Band And Wideband RF Transceiver With Integrated Application Processor

The ADRV9104BBCZ is a highly integrated RF transceiver with an integrated application processor featuring a single transmitter, dual receivers, integrated synthesizers, and digital signal processing functions. This high-performance, highly linear transceiver offers exceptional dynamic range while maintaining the lowest power consumption, making it ideal for portable and battery-powered equipment.

Technical Specifications

Integrated 1 Tx * 2 Rx RF transceiver
Operating frequency range: 70 MHz to 6000 MHz
Transmitter and wideband receiver signal bandwidth: 12 kHz to 40 MHz
Narrowband receiver signal bandwidth: 12 kHz to 2 MHz
2 fully integrated, fractional-N, RF synthesizers
2 fully integrated, fractional-N, RF PLLs to control external VCO banks
Supports external LO
LVDS and CMOS synchronous serial data interface options
Low power monitor and sleep modes
Fully integrated DPD for narrowband waveforms
User-programmable ARM core with 928 kB memory
Interfaces include: 2* UART, 2* I2S, I2C, QSPI, SPI, JTAG
Library of hardware accelerators
Fully programmable via a 4-wire SPI
Package: 196-ball, 10 mm * 10 mm, CSP_BGA

Applications

Land Mobile Radios
Mobile Satellite and Satellite IoT
Wireless microphones
Mission critical communications systems
Smart Meters
Factory Automation
