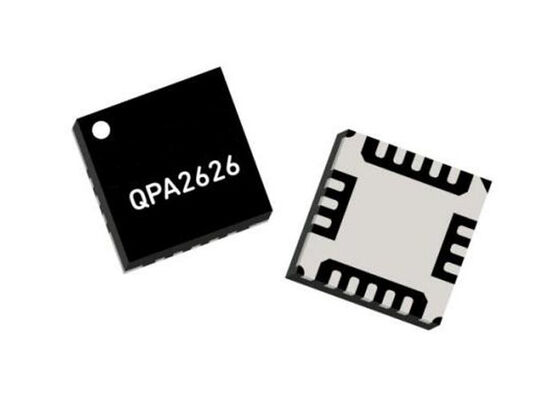

QPA2626 Wireless Communication Module 17GHz To 22GHz GaAs Low Noise Amplifier QFN16
The QPA2626 is a packaged, high-performance low noise amplifier fabricated on Qorvo's production 90nm pHEMT (QPHT09) process. Covering 17-22 GHz, this module provides 25 dB small signal gain and P1dB of 20 dBm, while supporting a noise figure of 1.3 dB and IM3 levels of -55 dBc (at Pout=0 dBm/tone).
Packaged in a compact 4 mm x 4 mm plastic overmold QFN, the QPA2626 is matched to 50 ohms with integrated DC blocking capacitors on both I/O ports for easy handling and simple system integration.
Specifications
| Parameter |
Value |
| Frequency Range |
17GHz ~ 22GHz |
| P1dB |
20dBm |
| Gain |
25dB |
| Noise Figure |
1.3dB |
| RF Type |
General Purpose |
| Supply Voltage |
3.5V |
| Supply Current |
90mA |
| Test Frequency |
17GHz ~ 22GHz |
| Mounting Type |
Surface Mount |
| Package / Case |
16-VQFN Exposed Pad |
Key Features
- Frequency range: 17 - 22 GHz
- Noise figure: 1.3 dB (typical)
- Small signal gain: 25 dB (typical)
- P1dB: 20 dBm (typical)
- IM3: -55 dBc (typical) (Pout=0 dBm/tone)
- Bias: VD = 3.5 V, IDQ = 90 mA, VG = -0.46 V (typical)
- Plastic overmolded package
- Package dimensions: 4.0 x 4.0 x 0.85 mm
Applications
- Point-to-point Communications
- Satellite Communications (Satcom)
- EW Signal Jammer
- EW Digital Receiver
- Multi-Band VSAT
- Repeaters / Boosters / DAS
