AWMF-0164 5G Module Single Polarization Quad 4x1 Beamformer IC For 5G Phased Array Operating At 24.25GHz To 27.5GHz

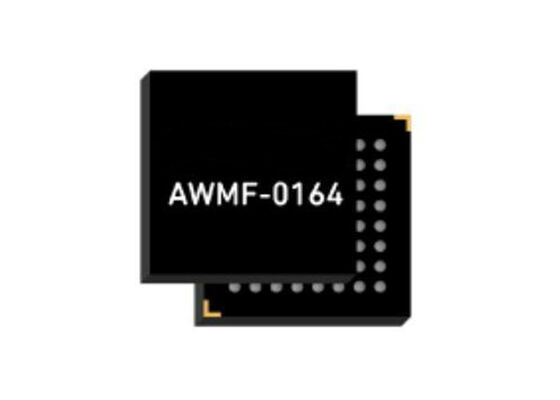

Large Image : AWMF-0164 5G Module Single Polarization Quad 4x1 Beamformer IC For 5G Phased Array Operating At 24.25GHz To 27.5GHz

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AWMF-0164

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	WLCSP
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

AWMF-0164 5G Module Single Polarization Quad 4x1 Beamformer IC For 5G Phased Array Operating At 24.25GHz To 27.5GHz

Description

Part Number:	AWMF-0164	Operating Frequency:	24.25GHz To 27.5GHz
Type:	Transmit/Receive	Polarization:	Single
Supply Voltage:	1.8V To +2.5V	Target Application:	5G
Highlight:	24.25GHz To 27.5GHz 5G Module , Single Polarization Beamformer IC , Quad 4x1 Phased Array IC

AWMF-0164 5G Module Single Polarization Quad 4x1 Beamformer For 5G Phased Array

The AWMF-0164 is a highly integrated silicon quad core IC designed for 5G phased array applications. This advanced module supports four Tx/Rx radiating elements and includes comprehensive beam steering controls for phase and gain management. Operating in half-duplex mode, it enables a single antenna to support both transmission and reception operations.

Key Specifications

Type: Transmit/Receive
Polarization: Single
Target Application: 5G Communications
Package Type: WLCSP (Wafer Level Chip Scale Package)
Supply Voltage: 1.8V to 2.5V
Operating Frequency: 24.25 to 27.5 GHz

Advanced Features

24.25 to 27.5 GHz operational frequency range
n258 3GPP band compatibility
Supports 4 radiating elements
Tx/Rx half-duplex operation
Single antenna support for both transmission and reception
Precise phase and gain control
Fast beam steering capabilities
Gain compensation over temperature
Temperature reporting functionality
Tx power telemetry
Fast beam switching with on-chip beam weight storage
ESD protection on all pins

Primary Applications

3GPP compliant 5G communications arrays operating in the n258 frequency band.
