AWMF-0165 5G Module Dual Polarization Quad 4x2 Beamformer for 24.25GHz To 27.5GHz 5G Communications Arrays

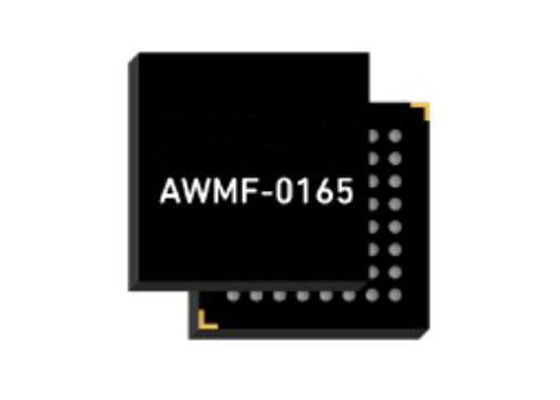

Large Image : AWMF-0165 5G Module Dual Polarization Quad 4x2 Beamformer for 24.25GHz To 27.5GHz 5G Communications Arrays

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AWMF-0165

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	WLCSP
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

AWMF-0165 5G Module Dual Polarization Quad 4x2 Beamformer for 24.25GHz To 27.5GHz 5G Communications Arrays

Description

Part Number:	AWMF-0165	Operating Frequency:	24.25GHz To 27.5GHz
Band:	N258 3GPP Band	Polarization:	Dual
Target Application:	5G	Type:	Dual Polarization Quad 4x2 Beamformer
Highlight:	24.25GHz To 27.5GHz 5G Module , Dual Polarization Beamformer , Quad 4x2 Beamformer 5G Communications IC

AWMF-0165 5G Module Dual Polarization Quad 4x2 Beamformer

The AWMF-0165 is a highly integrated silicon quad-core dual polarization IC designed for 5G phased array applications. This advanced IC features eight antenna ports that connect to four dual polarization antenna elements, supporting both horizontal and vertical polarizations in a phased array system.

Key Features

24.25 to 27.5 GHz operation frequency
n258 3GPP band compliance
Supports 4 radiating elements
Tx/Rx half duplex operation
Single antenna for both transmit and receive
Precise phase and gain control
Fast beam steering capabilities
Zero-Cal® phase/gain calibration-free operation

Technical Specifications

Polarization: Dual
Band: n258 3GPP Band
Target Application: 5G Communications
Package Type: WLCSP
Operating Frequency: 24.25GHz to 27.5GHz
Type: Dual Polarization Quad 4x2 Beamformer

Applications

3GPP compliant 5G communications arrays operating in the n258 frequency band.
