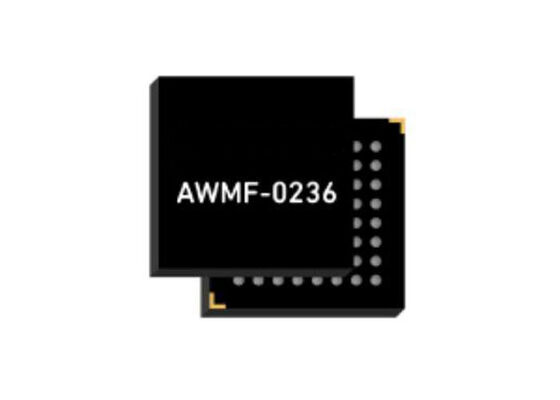

AWMF-0236 5G Module RF Beamforming IC with 37GHz To 43.5GHz Dual Polarization Quad 4x2 Beamformer

AWMF-0236 5G Module RF Beamforming IC with 37GHz To 43.5GHz Dual Polarization Quad 4x2 Beamformer
AWMF-0236 5G Module RF Beamforming IC with 37GHz To 43.5GHz Dual Polarization Quad 4x2 Beamformer

Large Image :  AWMF-0236 5G Module RF Beamforming IC with 37GHz To 43.5GHz Dual Polarization Quad 4x2 Beamformer

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AWMF-0236
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: FCCSP
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AWMF-0236 5G Module RF Beamforming IC with 37GHz To 43.5GHz Dual Polarization Quad 4x2 Beamformer

Description
Part Number: AWMF-0236 Operating Frequency: 37GHz To 43.5GHz
Band: N260 And N259 3GPP Bands Polarization: Dual
Package Type: FCCSP Type: Dual Polarization Quad 4x2 Beamformer
Highlight:

37GHz To 43.5GHz 5G Module

,

Dual Polarization Beamformer

,

Quad 4x2 RF Beamforming IC

AWMF-0236 5G Module 5G Communications Arrays Dual Polarization Quad 4x2 Beamformer
Product Overview

The AWMF-0236 is a highly integrated silicon RF beamforming IC (BFIC) built on our proven quad channel, dual polarization CMOS platform. This modular architecture delivers industry-leading antenna performance across multiple end-user applications with benchmark linear RF power and DC power efficiency, seamlessly supporting higher signal bandwidths and modulations.

Each BFIC includes beam steering controls for compliance with all 3GPP standards. Half duplex operation with dual polarization allows a single antenna aperture per sector coverage.

Operating Frequency Band: 37GHz To 43.5GHz
Polarization: Dual
Band: n260 and n259 3GPP bands
Target Application: 5G
Package Type: FCCSP
Type: Dual Polarization Quad 4x2 Beamformer
Key Features
  • Generation 4 IC family
  • 37 to 43.5 GHz operation
  • n260 and n259 3GPP bands
  • Supports both 5G NR and 802.11ac/802.11ax waveforms
  • Higher linear power and improved efficiency
  • 4 dual polarization or 8 single polarization antenna configuration
  • Tx/Rx half duplex operation
  • Single antenna for Tx and Rx
  • Phase and gain control
  • Telemetry reporting
  • Fast beam steering
  • Zero-Cal® phase/gain calibration free
  • FC-CSP package
Applications

3GPP compliant 5G communications arrays in the n258, n257, and n261 bands
