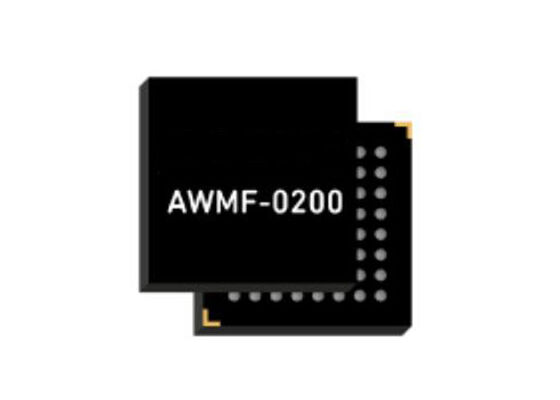

AWMF-0200 5G Module Quad Core Dual Polarization Beamformer IC
The AWMF-0200 is a highly integrated silicon quad-core dual polarization IC designed for 5G phased array applications. With eight antenna ports supporting four dual polarization antenna elements, it enables both horizontal and vertical polarizations in phased arrays. Two common ports allow simultaneous processing of both polarizations, while integrated beam steering controls provide phase and gain management for half-duplex Tx/Rx operation.
Specifications
Operating Frequency Band: 26.5GHz to 29.5GHz
Polarization: Dual
Band: n257 and n261 3GPP bands
Target Application: 3GPP compliant 5G communications arrays
Package Type: WLCSP
Type: Quad Core Dual Polarization Beamformer IC
Key Features
- 26.5 to 29.5 GHz operation
- n257 and n261 3GPP bands compatibility
- Supports 4 radiating elements
- Tx/Rx half duplex operation
- Single antenna for Tx and Rx
- Precise phase and gain control
- Fast beam steering capability
- Zero-Cal® phase/gain calibration free
Applications
3GPP compliant 5G communications arrays operating in the n257 and n261 frequency bands.
