AWMF-0240 Wireless Communication Module
10.7GHz To 12.75GHz Ku-Band Quad 4x2 Rx Beamformer IC
Product Overview

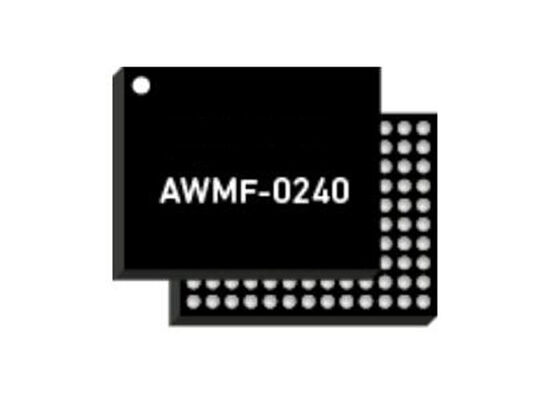

The AWMF-0240 is a cutting-edge CMOS Ku-band Receive (Rx) SATCOM beamformer IC operating from 10.7 to 12.75 GHz. This advanced component features four dual-polarization radiating elements with full polarization flexibility, gain compensation over temperature, and temperature reporting capabilities.
Key Specifications
- Polarization: Dual
- Operating Frequency Band: 10.7GHz To 12.75GHz
- Target Application: SATCOM
- Package Type: FC-CSP
- Type: Ku-Band Quad 4x2 Rx Beamformer IC
Advanced Features
- 10.7 to 12.75 GHz operation range
- Supports 4 dual polarization radiating elements
- Flexible polarization (RHCP, LHCP, linear)
- 6-bit phase control / 7-bit gain control
- Gain compensation over temperature
- Temperature reporting capability
- FC-CSP packaging for easy installation
Complementary Product
The AWMF-0240 is designed to work seamlessly with the Ku-Band Transmit (Tx) SATCOM beamformer IC: AWMF-0241. Together, these components enable satellite user terminal providers to create the industry's smallest, lowest power, highest efficiency, and most cost-effective phased array active antennas.
Applications
SATCOM Flat Panel terminals using LEO/MEO/GEO satellites in Government/commercial mobility and enterprise systems
Additional Technical Details
The chip incorporates ESD protection on all pins, operates from a +1.2 V supply, and is packaged in a Flip Chip Chip-Scale Package (FC-CSP) for straightforward integration into planar phased array antennas.
