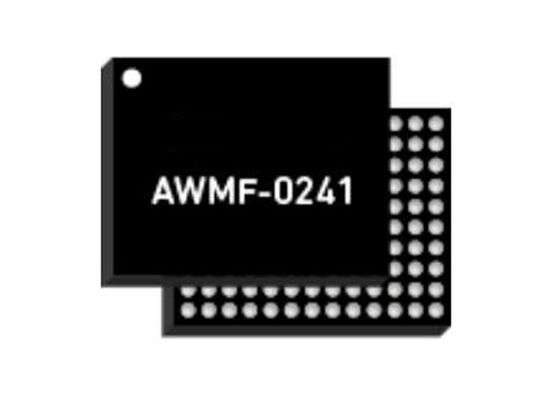

AWMF-0241 Wireless Communication Module Ku-Band Quad Transmit SATCOM Beamformer IC with 13.75GHz to 14.5GHz Operation and Dual Polarization

AWMF-0241 Wireless Communication Module Ku-Band Quad Transmit SATCOM Beamformer IC with 13.75GHz to 14.5GHz Operation and Dual Polarization
AWMF-0241 Wireless Communication Module Ku-Band Quad Transmit SATCOM Beamformer IC with 13.75GHz to 14.5GHz Operation and Dual Polarization

Large Image :  AWMF-0241 Wireless Communication Module Ku-Band Quad Transmit SATCOM Beamformer IC with 13.75GHz to 14.5GHz Operation and Dual Polarization

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AWMF-0241
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: FC-CSP
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AWMF-0241 Wireless Communication Module Ku-Band Quad Transmit SATCOM Beamformer IC with 13.75GHz to 14.5GHz Operation and Dual Polarization

Description
Part Number: AWMF-0241 Operating Frequency: 13.75GHz To 14.5GHz
Package Type: FC-CSP Polarization: Dual
Target Application: SATCOM Type: Ku-Band Quad Transmit SATCOM Beamformer IC
Highlight:

13.75GHz to 14.5GHz Wireless Communication Module

,

Dual Polarization SATCOM Beamformer IC

,

FC-CSP Packaging Ku-Band Transmit IC

AWMF-0241 Wireless Communication Module Ku-Band Quad Transmit SATCOM Beamformer IC
Product Overview

The AWMF-0241 is a CMOS Ku-band Transmit (Tx) SATCOM beamformer IC operating in the 13.75 to 14.5 GHz frequency range. This advanced component features four dual-polarization radiating elements with full polarization flexibility, gain compensation over temperature, and temperature reporting capabilities. Designed with ESD protection on all pins and operating from a +1.2V supply, it comes in a Flip Chip Chip-Scale Package (FC-CSP) for straightforward integration into planar phased array antennas.

This transmit beamformer is complemented by the AWMF-0240 Ku-Band Receive (Rx) SATCOM beamformer IC. Together, these components enable satellite user terminal providers to achieve the industry's most compact, power-efficient, and cost-effective phased array active antenna solutions.

Technical Specifications
  • Polarization: Dual
  • Operating Frequency Band: 13.75GHz to 14.5GHz
  • Target Application: SATCOM
  • Package Type: FC-CSP
  • Type: Ku-Band Quad Transmit SATCOM Beamformer IC
Key Features
  • 13.75GHz to 14.5GHz operation range
  • Supports 4 dual polarization radiating elements
  • Flexible polarization (RHCP, LHCP, linear)
  • 6-bit phase control / 7-bit gain control
  • Gain compensation over temperature
  • Temperature reporting capability
  • FC-CSP packaging for easy integration
Applications
SATCOM Flat Panel terminals using LEO/MEO/GEO satellites in Government/commercial mobility and enterprise systems.
