2315239-1 6 Position Shielded Automotive HSD Data Connector 100V Wire-to-Board Vertical Mount

Large Image : 2315239-1 6 Position Shielded Automotive HSD Data Connector 100V Wire-to-Board Vertical Mount

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	2315239-1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	6POS
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

2315239-1 6 Position Shielded Automotive HSD Data Connector 100V Wire-to-Board Vertical Mount

Description

Part Number:	2315239-1	Connector System:	Wire-to-Board
Voltage Rating:	100V	Number Of Rows:	2
Number Of Positions:	6	Operating Temperature:	-40°C ~ 105°C
Highlight:	6 Position Automotive Connector , Shielded HSD Data Connector , 100V Wire-to-Board Connector

2315239-1 Connectors Automotive Connectors 6POS Automotive HSD Data Connectivity Headers

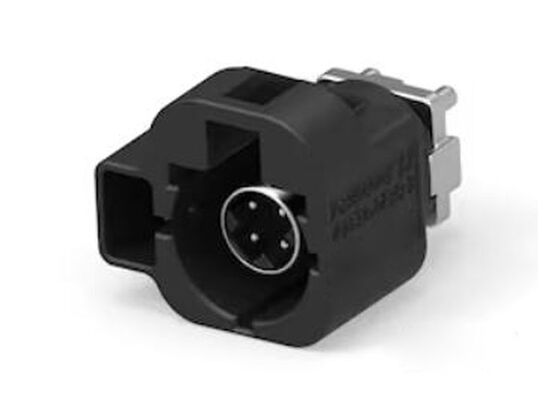

The 2315239-1 is a 6-position wire-to-board automotive connector featuring shielded vertical board mount design for automotive HSD data connectivity headers.

Product Specifications

Specification	Details
Connector Style	HSD®, Fakra, Quadraxial
Connector Type	Plug, Male Pin
Contact Termination	Solder
Shield Termination	Solder
Mounting Type	Through Hole
Fastening Type	Latch Lock
Number of Ports	1
Features	Code A
Housing Color	Black
Center Contact Material	Copper Alloy
Body Material	Zinc Alloy
Body Finish	Tin
Center Contact Plating	Tin
Dielectric Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C ~ 105°C
Voltage Rating	100 V

Configuration Features

Connector System: Wire-to-Board
Number of Rows: 2
PCB Mount Orientation: Vertical
Number of Positions: 6
Operating Temperature (Max): 105°C [221°F]
Operating Temperature Range: -40°C to 105°C [-40°F to 221°F]

Contact Features

Contact Mating Area Plating Material: Gold (Au) | Tin (Sn)
Mating Tab Width: 0.63 mm [0.02 in]
Mating Tab Thickness: 0.63 mm [0.02 in]
Mating Pin Diameter: 0.6 mm [0.02 in]
Contact Current Rating (Max): 2.5A | 5A
