FF1400R12IP4 Automotive IGBT Module 1200V 1400A Half Bridge with TRENCHSTOP IGBT4 Technology

Large Image : FF1400R12IP4 Automotive IGBT Module 1200V 1400A Half Bridge with TRENCHSTOP IGBT4 Technology

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	FF1400R12IP4

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MODULE
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

FF1400R12IP4 Automotive IGBT Module 1200V 1400A Half Bridge with TRENCHSTOP IGBT4 Technology

Description

Part Number:	FF1400R12IP4	Configuration:	Half-bridge
Technology:	IGBT4 - P4	Collector- Emitter Voltage VCEO Max:	1.2 KV
Gate-Emitter Leakage Current:	400 NA	Pd - Power Dissipation:	7.65 KW
Highlight:	1200V Automotive IGBT Module , 1400A Half Bridge IGBT Module , TRENCHSTOP IGBT4 Silicon Module

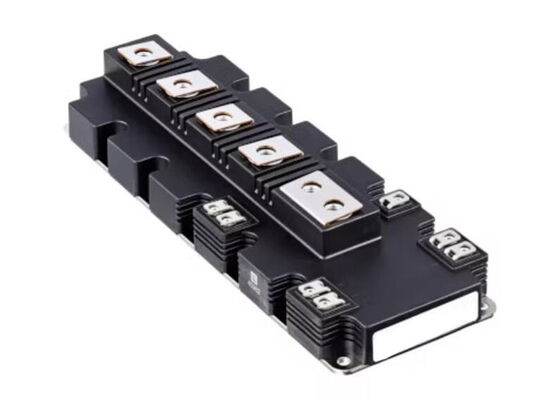

FF1400R12IP4 Automotive IGBT Modules 1200V 1400A Half Bridge Dual IGBT Module

Product Overview

FF1400R12IP4 is a PrimePACK™ 3 1200V, 1400A half bridge dual IGBT module featuring TRENCHSTOP™ IGBT4 technology, Emitter Controlled 4 diode, NTC temperature sensor, and soft switching chip. Also available with Thermal Interface Material for enhanced thermal performance.

Technical Specifications

Product Type	IGBT Silicon Modules
Configuration	Dual
Collector-Emitter Voltage VCEO Max	1.2 kV
Collector-Emitter Saturation Voltage	1.75 V
Continuous Collector Current at 25°C	1.4 kA
Gate-Emitter Leakage Current	400 nA
Power Dissipation	7.65 kW
Package / Case	PRIME3
Operating Temperature Range	-40°C to +150°C
Maximum Gate Emitter Voltage	20 V
Mounting Style	Screw Mount
Series	Trench/Fieldstop IGBT4 - P4

Key Features

High DC stability and current density
Unbeatable robustness and reliability
VCEsat with positive temperature coefficient
Low VCEsat for improved efficiency
4 kV AC 1 minute insulation rating
Package with CTI > 400
High creepage and clearance distances
High power and thermal cycling capability
Substrate for low thermal resistance
Extended operation temperature: -40°C to 150°C

Applications

Automotive battery management system (BMS) - high-voltage
Washing and drying equipment
Battery energy storage (BESS)
General purpose motor drive
Traction systems
Photovoltaic inverters
Wind power systems
Motor control
Uninterruptible power supplies (UPS)
