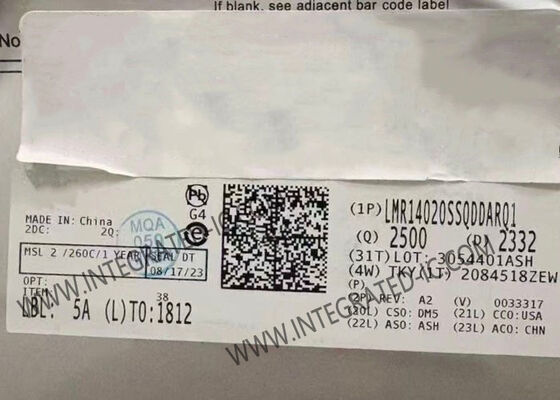

LMR14020SSQDDARQ1 Integrated Circuit Chip 40V Input 2A Output Automotive Grade Step-Down Converter

LMR14020SSQDDARQ1 Integrated Circuit Chip 40V Input 2A Output Automotive Grade Step-Down Converter
LMR14020SSQDDARQ1 Integrated Circuit Chip 40V Input 2A Output Automotive Grade Step-Down Converter LMR14020SSQDDARQ1 Integrated Circuit Chip 40V Input 2A Output Automotive Grade Step-Down Converter

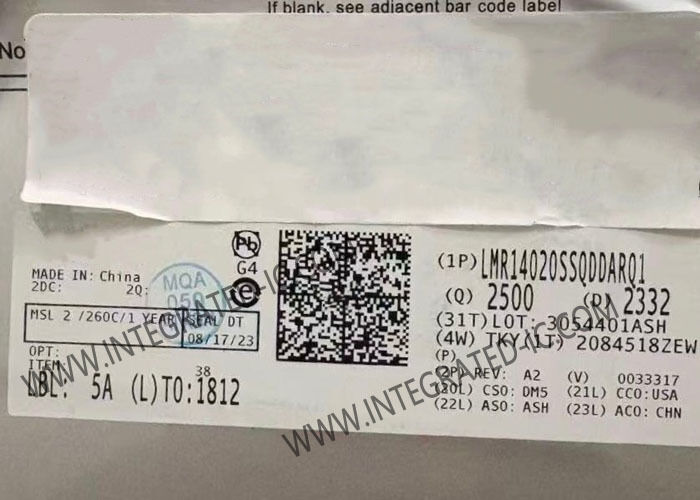

Large Image :  LMR14020SSQDDARQ1 Integrated Circuit Chip 40V Input 2A Output Automotive Grade Step-Down Converter

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LMR14020SSQDDARQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-SO PowerPad
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

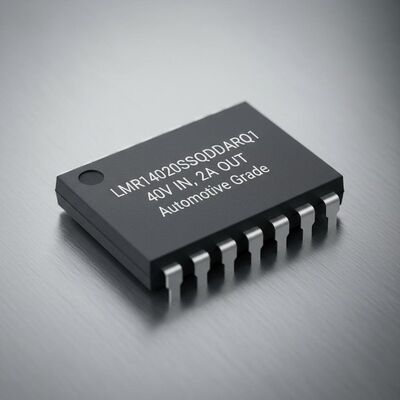

LMR14020SSQDDARQ1 Integrated Circuit Chip 40V Input 2A Output Automotive Grade Step-Down Converter

Description
Part Number: LMR14020SSQDDARQ1 Output Voltage:: 800 MV To 28 V
Output Current:: 2 A Number Of Outputs:: 1 Output
Input Voltage - Min:: 4 V Input Voltage - Max:: 40 V
Highlight:

40V Input Integrated Circuit Chip

,

2A Output Step-Down Converter

,

Automotive Grade LMR14020SSQDDARQ1

LMR14020SSQDDARQ1 Integrated Circuit Chip
SIMPLE SWITCHER Automotive 40V 2A 2.2MHz Step-Down Converter With 40uA IQ
Product Overview
The LMR14020SSQDDARQ1 is a 40V, 2A step-down regulator with an integrated high-side MOSFET. With a wide input range from 4V to 40V, this device is engineered for various applications from industrial to automotive for power conditioning from unregulated sources.
Technical Specifications
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4V
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 28V
Current - Output 2A
Frequency - Switching 200kHz ~ 2.5MHz
Synchronous Rectifier No
Operating Temperature -40°C ~ 125°C (TJ)
Grade Automotive
Key Features
  • Qualified for automotive applications
  • AEC-Q100 qualified with temperature grade 1: -40°C to 125°C ambient operating temperature range
  • Device HBM ESD classification level H1C
  • Device CDM ESD classification level C4A
  • 4V to 40V input range
  • 2A continuous output current
  • Ultra-low 40µA operating quiescent current
  • 90mΩ high-side MOSFET
  • 75ns minimum switch-on time
  • Current mode control
  • Adjustable switching frequency from 200kHz to 2.5MHz
  • Frequency synchronization to external clock
  • Spread spectrum option for reduced EMI
  • Fixed 5V output option
  • Internal compensation for ease of use
  • High duty cycle operation supported
  • Precision enable input
  • 1µA shutdown current
  • External soft start
  • Thermal, overvoltage, and short protection
Applications
  • Automotive battery regulation
  • Industrial power supplies
  • Telecom and datacom systems
  • General purpose wide Vin regulation
