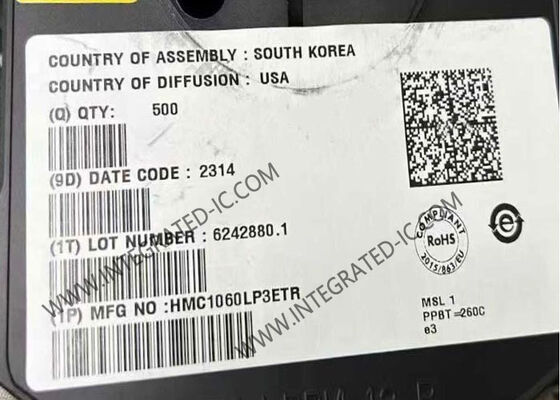

HMC1060LP3ETR Integrated Circuit Chip Quad Low Noise High PSRR Linear Voltage Regulator with 500 mA Output Current

Large Image : HMC1060LP3ETR Integrated Circuit Chip Quad Low Noise High PSRR Linear Voltage Regulator with 500 mA Output Current

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	HMC1060LP3ETR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-16
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

HMC1060LP3ETR Integrated Circuit Chip Quad Low Noise High PSRR Linear Voltage Regulator with 500 mA Output Current

Description

Part Number:	HMC1060LP3ETR	Number Of Outputs::	4 Output
Output Voltage::	1.8 V To 5.2 V	Output Current::	500 MA
Quiescent Current::	2.1 MA	Load Regulation::	0.007 %/mA
Highlight:	Quad Low Noise Integrated Circuit Chip , High PSRR Linear Voltage Regulator , 500 mA Output Current Quad Output Regulator

HMC1060LP3ETR Integrated Circuit Chip Quad Low Noise High PSRR Linear Voltage Regulator

The HMC1060LP3ETR is a BiCMOS ultra low noise quad-output linear voltage regulator designed for high performance applications requiring exceptional power supply isolation. With maximum current of 500 mA distributed across four independent outputs, this regulator can power all requirements of Hittite's Wideband PLL with Integrated VCO products, including the HMC830LP6GE.

While optimized for Hittite's Wideband PLLs with Integrated VCO products, the HMC1060LP3ETR serves as an excellent general purpose regulator supporting adjustable output voltages from 1.8V to 5.2V.

Technical Specifications

Number of Outputs	4 Output
Polarity	Positive
Output Voltage	1.8 V to 5.2 V
Output Current	500 mA
Output Type	Adjustable
Input Voltage - Min	5.3 V
Input Voltage - Max	5.6 V
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Quiescent Current	2.1 mA
Load Regulation	0.007 %/mA
Power Dissipation	1.6 mW
PSRR / Ripple Rejection - Typ	80 dB
Unit Weight	20.300 mg

Key Features

Ultra Low Noise: 3nV/√Hz at 10 kHz, 7 nV/√Hz at 1 kHz
Four Adjustable Voltage Outputs:
- VR1: 100 mA at 1.8V to 5.2V
- VR2 & VR3: 50 mA at 1.8V to 5.2V
- VR4: 300 mA at 1.8V to 5.2V
Thermal Protection
High Power Supply Rejection Ratio (PSRR): 80 dB at 1 kHz, 60 dB at 1 MHz
Optional Proportional To Temperature (PTAT) Output Voltages: 7 % / 125 °C
Low Power-Down Current: <1 μA
16 Lead 3 * 3 mm SMT Package: 9 mm²

Applications

Ultra Low Noise Frequency Generation (PLLs, VCOs, PLLs with Integrated VCOs)
RF & Mixed-Signal Supply
