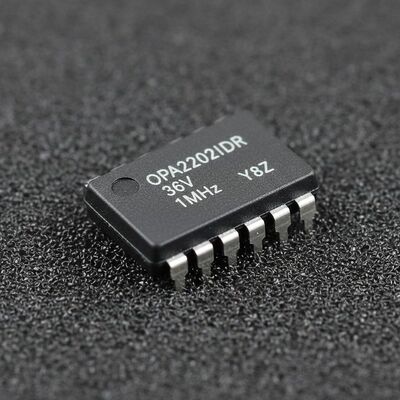

OPA2202IDR Integrated Circuit Chip 36V Low-Noise Operational Amplifiers SOIC8
The OPA2202IDR is a dual super-beta precision operational amplifier featuring low-noise performance (0.2 µVPP, 9 nV/√Hz) and heavy capacitive drive capability (25 nF). This IC offers an exceptional combination of DC precision, robust capacitive load drive, and protection against external EMI, thermal, and short-circuit events. Operating with a supply current of 580 µA at ±18 V, the OPAx202 series does not exhibit phase inversion and remains stable with high capacitive loads. Fully specified for temperatures ranging from -40°C to +105°C.
Technical Specifications
| Parameter |
Value |
| Amplifier Type |
Standard (General Purpose) |
| Number of Circuits |
2 |
| Output Type |
Push-Pull |
| Slew Rate |
0.35V/µs |
| Gain Bandwidth Product |
1 MHz |
| Input Bias Current |
250 pA |
| Input Offset Voltage |
20 µV |
| Supply Current |
580µA |
| Output Current per Channel |
35 mA |
| Minimum Supply Voltage |
4.5 V |
| Maximum Supply Voltage |
36 V |
| Operating Temperature |
-40°C ~ 105°C (TA) |
| Mounting Type |
Surface Mount |
| Package / Case |
8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package |
8-SOIC |
Key Features
- Precision super-beta performance: Low offset voltage: 200 µV (maximum), Ultra-low drift: 1 µV/°C (maximum)
- Excellent efficiency: Quiescent current: 580 µA (typical), Gain-bandwidth product: 1 MHz, Low input voltage noise: 9 nV/√Hz
- Ease of use and design simplicity: Heavy capacitive load drive: 5-µs settling time with 25 nF, Ultra-high input impedance: 3000 GΩ and 0.5 pF, EMI hardened with thermal and short-circuit protection
- Stable Performance: High CMRR and AOL: 126 dB (minimum), High PSRR: 126 dB (minimum)
- Low bias current: 2 nA (maximum)
- Low 0.1-Hz to 10-Hz noise: 0.2 µVPP
- Wide supply voltage: ±2.25 V to ±18 V
- Direct replacement for OP-07 and OP-27 amplifiers
Typical Applications
Data acquisition (DAQ), Lab and field instrumentation, Merchant network and server PSU, Multiparameter patient monitor, String inverter
