TPS259620DDAR Integrated Circuit Chip eFuse IC with 2A Current Limit Wide Input Voltage Range 2.7V to 19V and Overvoltage Protection

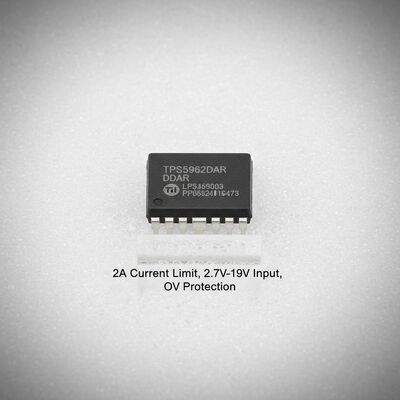

Large Image : TPS259620DDAR Integrated Circuit Chip eFuse IC with 2A Current Limit Wide Input Voltage Range 2.7V to 19V and Overvoltage Protection

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS259620DDAR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	HSOIC-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TPS259620DDAR Integrated Circuit Chip eFuse IC with 2A Current Limit Wide Input Voltage Range 2.7V to 19V and Overvoltage Protection

Description

Part Number:	TPS259620DDAR	Current Limit:	125 MA To 2 A
Operating Supply Current:	206 UA	Number Of Channels:	1 Channel
Voltage - Input:	2.7V ~ 19V	Operating Temperature:	-40°C ~ 125°C
Highlight:	2A Current Limit eFuse IC , Wide Input Voltage Range Integrated Circuit Chip , Overvoltage Protection Electronic Fuse Regulator

TPS259620DDAR Integrated Circuit Chip eFuse IC 2A Electronic Fuse Regulator HSOIC8

The TPS259620DDAR is an Electronic Fuse Regulator with selectable over voltage protection clamp in a leaded package. This highly integrated circuit protection and power management solution comes in a compact package, providing multiple protection modes using minimal external components. It offers robust defense against overloads, short circuits, voltage surges, and excessive inrush current.

Product Specifications

Function	Electronic Fuse
Accuracy	±10.4%
Voltage - Input	2.7V ~ 19V
Current - Output	2A
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO PowerPad

Key Features

Wide input voltage range: 2.7V to 19V (21V Absolute maximum)
Low On-Resistance: Ron = 89-mΩ (typical)
Active high enable input with adjustable undervoltage lockout (UVLO)
Overvoltage protection options:
- Fast overvoltage clamp (3.8V, 5.7V and 13.8V pin-selectable thresholds) with 5-μs typical response time
- Adjustable overvoltage lockout (OVLO) with 1.3-μs typical response time
Adjustable current limit with load current monitor output (ILM)
Current range: 0.125A to 2A
Current limit accuracy: ±10.4% maximum across current range, ±5.5% maximum at 1-A current limit
Immune to Electrical Fast Transients (IEC 61000-4-4)
Adjustable output slew rate control (dVdt)
Overtemperature protection (OTP)
Fault indication pin (FLT)
UL 2367 recognition (pending)
IEC 62368 CB certification (pending)
Small footprint: 4.91 mm x 3.9 mm SOIC package

Applications

Energy meters
UL 60335-1 15-W LPC in Appliances:
- Refrigerators
- Dishwashers
- Washing machine and dryers
Set-top boxes
IP Network cameras
