TLE4945L XENSIV™ Magnetic Hall-Effect Switch IC with Bipolar Switch Temperature Compensated and Reverse Polarity Protection

TLE4945L XENSIV™ Magnetic Hall-Effect Switch IC with Bipolar Switch Temperature Compensated and Reverse Polarity Protection
TLE4945L XENSIV™ Magnetic Hall-Effect Switch IC with Bipolar Switch Temperature Compensated and Reverse Polarity Protection TLE4945L XENSIV™ Magnetic Hall-Effect Switch IC with Bipolar Switch Temperature Compensated and Reverse Polarity Protection

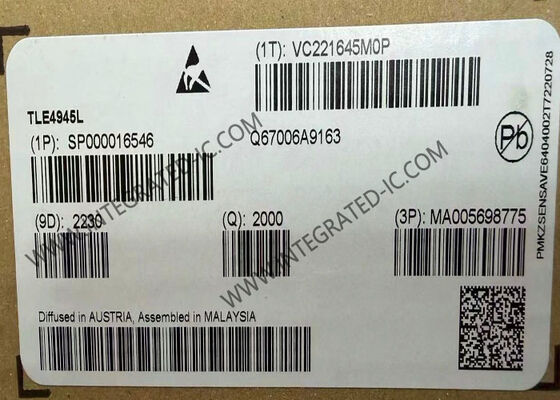

Large Image :  TLE4945L XENSIV™ Magnetic Hall-Effect Switch IC with Bipolar Switch Temperature Compensated and Reverse Polarity Protection

Product Details:
Brand Name: Original Factory
Contact Now

TLE4945L XENSIV™ Magnetic Hall-Effect Switch IC with Bipolar Switch Temperature Compensated and Reverse Polarity Protection

Description
Highlight:

Bipolar Switch Sensor IC

,

Temperature Compensated Hall-Effect Switch IC

,

Reverse Polarity Protection Magnetic Hall Switch

TLE4945L Sensor IC XENSIV™ Magnetic Hall-Effect Switch IC
The TLE4945L XENSIV™ magnetic Hall switch is engineered for demanding automotive and industrial applications. This bipolar switch features integrated reverse polarity protection and output protection against negative voltage transients, making it ideal for current commutation in brushless drives and deployment in body applications such as window lift modules.
Technical Specifications
Function Bipolar Switch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range 6mT Trip, -6mT Release
Test Condition 25°C
Voltage - Supply 3.8V ~ 24V
Current - Supply (Max) 8mA
Current - Output (Max) 100mA
Output Type Open Collector
Features Temperature Compensated
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-SSO-3-2
Package / Case 3-SSIP, SSO-3-02
Key Features
  • Digital output signal
  • Compatible with unipolar and alternating magnetic fields
  • Extended operating temperature range
  • Temperature compensated magnetic performance
  • Integrated reverse polarity protection
  • Output protection against electrical disturbances
Primary Applications
  • Vacuum cleaners
  • Automotive window lift modules
  • Brushless drive systems
  • Industrial sensing applications
