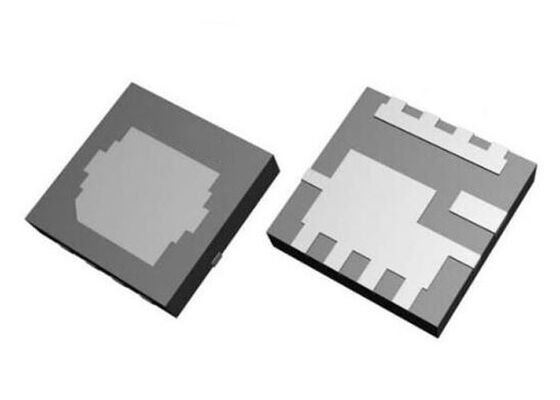

IQEH42NE2LM7ZCGSC Integrated Circuit Chip Power MOSFET Transistor 25V 460A N-Channel OptiMOS 7

IQEH42NE2LM7ZCGSC Integrated Circuit Chip Power MOSFET Transistor 25V 460A N-Channel OptiMOS 7
IQEH42NE2LM7ZCGSC Integrated Circuit Chip Power MOSFET Transistor 25V 460A N-Channel OptiMOS 7

Large Image :  IQEH42NE2LM7ZCGSC Integrated Circuit Chip Power MOSFET Transistor 25V 460A N-Channel OptiMOS 7

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IQEH42NE2LM7ZCGSC
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-WHTFN-9
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IQEH42NE2LM7ZCGSC Integrated Circuit Chip Power MOSFET Transistor 25V 460A N-Channel OptiMOS 7

Description
Part Number: IQEH42NE2LM7ZCGSC Transistor Polarit: N-Channel
Vds - Drain-Source Breakdown Voltage: 25 V Id - Continuous Drain Current: 460 A
Pd - Power Dissipation: 150 W Qg - Gate Charge: 29 NC
Highlight:

25V Integrated Circuit Chip

,

460A Power MOSFET Transistor

,

N-Channel OptiMOS 7

IQEH42NE2LM7ZCGSC Integrated Circuit Chip 25V 460A OptiMOS 7 Power MOSFET Transistor
Product Overview

IQEH42NE2LM7ZCGSC is a 25V, OptiMOS™ 7 switching optimized power MOSFET transistor designed for hard- and soft-switching topologies in PQFN 3.3x3.3 Source-Down package. This advanced power MOSFET offers application-optimized performance for data centers, servers, AI applications, and more.

Technology Features

The OptiMOS™ 7 25V portfolio is available in two technology flavors: products optimized for hard-switching with excellent Miller ratio, FOMs and RDS(on) 10, and products optimized for soft-switching with ultra-low RDS(on)45 and FOMQg.

Technical Specifications
Product Category MOSFETs
Technology Si
Mounting Style SMD/SMT
Package / Case PG-WHTFN-9
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 25 V
Id - Continuous Drain Current 460 A
Vgs - Gate-Source Voltage 12 V
Vgs th - Gate-Source Threshold Voltage 1.7 V
Qg - Gate Charge 29 nC
Minimum Operating Temperature -55℃
Maximum Operating Temperature +175℃
Pd - Power Dissipation 150 W
Channel Mode Enhancement
Configuration Single
Fall Time 5.2 ns
Forward Transconductance - Min 100 S
Product Type MOSFETs
Rise Time 2 ns
Subcategory Transistors
Transistor Type 1 N-Channel
Typical Turn-Off Delay Time 35 ns
Typical Turn-On Delay Time 5.9 ns
Key Features
  • Hard- and soft-switching optimizations
  • Hard-switching: Excellent Miller ratio, FOM, RDS(on) 10
  • Soft-switching: Ultra-low RDS(on)45, FOMQg
  • +175°C junction temperature rating
  • Source-down package variants
  • Center-gate footprint, DSC & overmolded
