IQE018N06NM6 60V 178 A 1.8 mΩ OptiMOS™ 6 Power MOSFET Transistor Integrated Circuit Chip PG-TSON-8

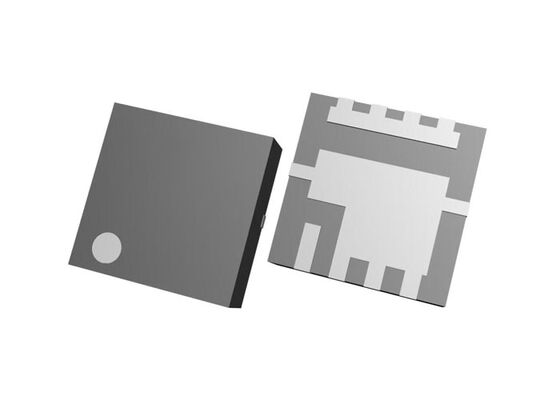

Large Image : IQE018N06NM6 60V 178 A 1.8 mΩ OptiMOS™ 6 Power MOSFET Transistor Integrated Circuit Chip PG-TSON-8

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IQE018N06NM6

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-TSON-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

IQE018N06NM6 60V 178 A 1.8 mΩ OptiMOS™ 6 Power MOSFET Transistor Integrated Circuit Chip PG-TSON-8

Description

Part Number:	IQE018N06NM6	ID (@25°C) Max:	178 A
QG (typ @10V):	43 NC	RDS (on) (@10V) Max:	1.8 MΩ
VDS Max:	60 V	Operating Temperature:	-55 °C To 175 °C
Highlight:	60V Power MOSFET Transistor , 178 A Integrated Circuit Chip , 1.8 mΩ OptiMOS™ 6

IQE018N06NM6 Integrated Circuit Chip 60V OptiMOS™ 6 Power MOSFET Transistors PG-TSON-8

Product Overview

The IQE018N06NM6 is a 60V OptiMOS™ 6 Power MOSFET Transistor in PG-TSON-8 package. Infineon's latest wafer technology delivers significant performance improvements over OptiMOS™ 5, including >37% lower RDS(on) and ~25% improved FOMQg x RDS(on). These enhancements result in higher system efficiency and power density for soft-switching topologies and low-frequency applications.

Technical Specifications

ID (@25°C) max	178 A
Polarity	N
QG (typ @10V)	43 nC
RDS (on) (@10V) max	1.8 mΩ
VDS max	60 V
VGS(th)	2.7 V
Operating Temperature	-55 °C to 175 °C
Package	PQFN 3.3x3.3 Source-Down

Key Features

High performance silicon technology
Soft-switching optimized
Normal level gate drive
175°C rated
Industrial qualification
Source-down package variants
Standard-gate footprint

Applications

General purpose motor drive
DC-DC power conversion
