ISZ023N06LM6 Integrated Circuit Chip OptiMOS™ 6 Power MOSFET Transistor with 149A Continuous Drain Current 2.3 mOhms Drain-Source Resistance and 100W Power Dissipation

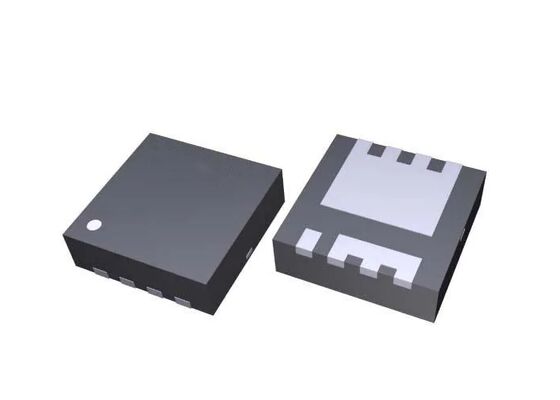

Large Image : ISZ023N06LM6 Integrated Circuit Chip OptiMOS™ 6 Power MOSFET Transistor with 149A Continuous Drain Current 2.3 mOhms Drain-Source Resistance and 100W Power Dissipation

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ISZ023N06LM6

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-TSDSON-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ISZ023N06LM6 Integrated Circuit Chip OptiMOS™ 6 Power MOSFET Transistor with 149A Continuous Drain Current 2.3 mOhms Drain-Source Resistance and 100W Power Dissipation

Description

Part Number:	ISZ023N06LM6	Rds On - Drain-Source Resistance::	2.3 MOhms
Pd - Power Dissipation::	100 W	Fall Time::	2.9 Ns
Typical Turn-Off Delay Time::	21.1 Ns	Typical Turn-On Delay Time::	5.9 Ns
Highlight:	149A Continuous Drain Current Power MOSFET Transistor , 2.3 mOhms Drain-Source Resistance Integrated Circuit Chip , 100W Power Dissipation OptiMOS™ 6

ISZ023N06LM6 Integrated Circuit Chip 149A OptiMOS™ 6 N-Channel Power MOSFET Transistors

ISZ072N06NM6 is OptiMOS™ 6 60V 194A N-Channel Power MOSFET Transistors in PG-TSDSON-8 Package.

Technical Specifications

Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	60 V
Id - Continuous Drain Current:	149 A
Rds On - Drain-Source Resistance:	2.3 mOhms
Vgs - Gate-Source Voltage:	20 V
Vgs th - Gate-Source Threshold Voltage:	2.3 V
Qg - Gate Charge:	22 nC
Minimum Operating Temperature:	-55°C
Maximum Operating Temperature:	+175°C
Pd - Power Dissipation:	100 W
Channel Mode:	Enhancement
Configuration:	Single
Fall Time:	2.9 ns
Forward Transconductance - Min:	55 S
Product Type:	MOSFETs
Rise Time:	1.5 ns
Typical Turn-Off Delay Time:	21.1 ns
Typical Turn-On Delay Time:	5.9 ns

Key Features

High performance silicon technology
Soft-switching optimized
Normal level gate drive
175°C rated
Industrial qualification

Performance Benefits

Lower conduction losses than OptiMOS™ 5
Lower switching losses than OptiMOS™ 5
Improved performance efficiency
Superior power handling capability
Robust reliable performance

Applications

General purpose motor drive, DC-DC power conversion
