ISC060N06NM6 60V 62A N-Channel OptiMOS™ 6 Power MOSFET Transistor Integrated Circuit Chip PG-TDSON-8

ISC060N06NM6 60V 62A N-Channel OptiMOS™ 6 Power MOSFET Transistor Integrated Circuit Chip PG-TDSON-8
ISC060N06NM6 60V 62A N-Channel OptiMOS™ 6 Power MOSFET Transistor Integrated Circuit Chip PG-TDSON-8

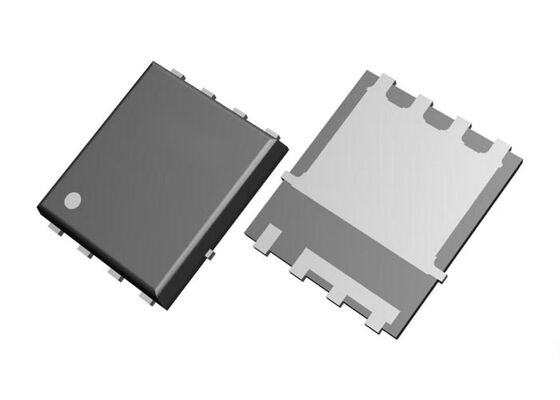

Large Image :  ISC060N06NM6 60V 62A N-Channel OptiMOS™ 6 Power MOSFET Transistor Integrated Circuit Chip PG-TDSON-8

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ISC060N06NM6
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-TDSON-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ISC060N06NM6 60V 62A N-Channel OptiMOS™ 6 Power MOSFET Transistor Integrated Circuit Chip PG-TDSON-8

Description
Part Number: ISC060N06NM6 Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 60 V ID (@25°C) Max: 62 A
QG (typ @10V): 12.4 NC Operating Temperature: -55 °C To 175 °C
Highlight:

60V Power MOSFET Transistor

,

62A Power MOSFET Transistor

,

N-Channel OptiMOS™ 6

ISC060N06NM6 Integrated Circuit Chip
60V 62A OptiMOS™ 6 Power MOSFET Transistor in PG-TDSON-8 package
Product Overview
The ISC060N06NM6 is a high-performance 60V, 62A OptiMOS™ 6 Power MOSFET Transistor packaged in PG-TDSON-8, designed for superior power efficiency and reliability in industrial applications.
Technical Specifications
Series OptiMOS™ 6 Power-Transistor
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) 40A (Ta), 344A (Tc)
Drive Voltage 8V, 10V
Rds On (Max) @ Id, Vgs 0.9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 3.3V @ 118µA
Gate Charge (Qg) (Max) @ Vgs 121 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 8300 pF @ 30 V
Power Dissipation (Max) 3W (Ta), 221W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-WSON-8-2
Package / Case 8-PowerWDFN
Key Features
  • High performance silicon technology
  • Soft-switching optimized
  • Normal level gate drive
  • 175°C rated
  • Industrial qualification
Performance Benefits
  • Lower conduction losses than OptiMOS™ 5
  • Lower switching losses than OptiMOS™ 5
  • Improved performance efficiency
  • Superior power handling capability
  • Robust reliable performance
Primary Applications
  • General purpose motor drive
