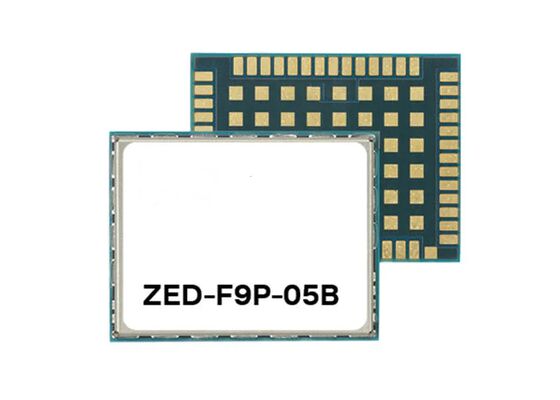

ZED-F9P-05B Wireless Communication GNSS Module with High Precision Dual Band L1/L2 and Centimeter-Level Accuracy

ZED-F9P-05B Wireless Communication GNSS Module with High Precision Dual Band L1/L2 and Centimeter-Level Accuracy
ZED-F9P-05B Wireless Communication GNSS Module with High Precision Dual Band L1/L2 and Centimeter-Level Accuracy

Large Image :  ZED-F9P-05B Wireless Communication GNSS Module with High Precision Dual Band L1/L2 and Centimeter-Level Accuracy

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ZED-F9P-05B
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 54-SMD Module
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ZED-F9P-05B Wireless Communication GNSS Module with High Precision Dual Band L1/L2 and Centimeter-Level Accuracy

Description
Part Number: ZED-F9P-05B Supply Voltage - Min:: 2.7 V
Supply Voltage - Max:: 3.6 V Interface Type:: I2C, SPI, UART, USB
Maximum Operating Temperature:: + 85 C Minimum Operating Temperature:: - 40 C
Highlight:

High Precision GNSS Module

,

Dual Band L1/L2 Wireless Communication Module

,

Centimeter-Level Accuracy F9 Receiver Module

ZED-F9P-05B Wireless Communication Module
F9 High Precision Dual Band L1/L2 GNSS Module with centimeter-level accuracy for industrial applications.
Product Overview
The ZED-F9P-05B positioning module features the u-blox F9 receiver platform, delivering multi-band GNSS to high-volume industrial applications. This module integrates u-blox multi-band RTK and PPP-RTK technologies for centimeter-level accuracy in a compact surface-mounted form factor of only 17.0 x 22.0 x 2.4 mm.
The module includes moving base support, allowing both base and rover to move while computing positions between them. This feature is ideal for UAV applications where the UAV follows its owner or lands on moving platforms, as well as attitude sensing applications where relative position data derives vehicle or tool attitude information.
Technical Specifications
Parameter Specification
Sensitivity -167dBm
Data Rate (Max) 921.6kbps
Modulation or Protocol BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS, SBAS
Applications General Purpose
Data Interface I2C, SPI, UART, USB
Antenna Connector Not Included
Features SPI digital interface, UART interface, USB Interface
Voltage - Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Key Features
  • Concurrent reception of all constellations
  • Multi-band RTK with fast convergence times and reliable performance
  • Centimeter-level accuracy in a small and energy-efficient module
  • Easy integration of RTK for fast time-to-market
  • Native support for PointPerfect simplifies integration
